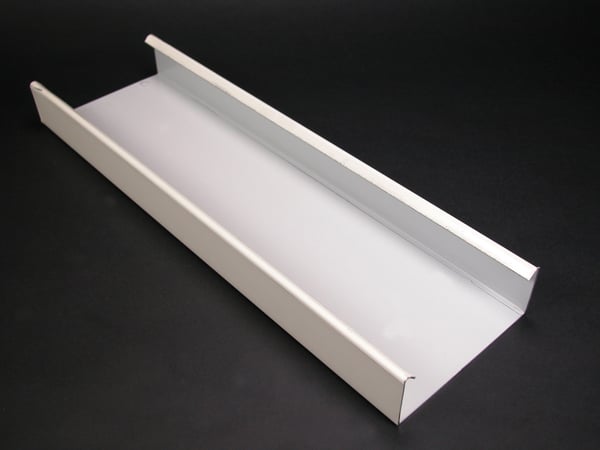

Wiremold® V4000B-10 Raceway Base, 4-3/4 in L x 4-3/4 in W x 1-3/4 in H, Steel, Ivory/Gray

Pick Up Only
Selected Data-Spec SheetWiremold® V4000B-10 Raceway Base, 4-3/4 in L x 4-3/4 in W x 1-3/4 in H, Steel, Ivory/Gray
Data-Spec SheetWiremold® V4000B-10 Raceway Base, 4-3/4 in L x 4-3/4 in W x 1-3/4 in H, Steel, Ivory/Gray

Documents

Short Description

Wiremold cable management raceway products have been defining the cable raceway category as an alternative to electrical conduit for close to a century. Wiremold Raceway Systems Are Attractive, Cost-Effective Solutions For Bringing Electrical, Communication And A/V Cables And Wires Wherever They'Re Needed, In Virtually Any Type Of Room.

Features

  • 1-3/4 in outside diameter
  • Large cross section area, provides ample space for large wiring requirements
  • Complete line of fittings, provides complete wiring solution and allows for interconnection between raceway systems
  • Gray baked enamel and Ivory ScuffCoat finish makes a scratch resistant surface
  • 0.054 in (13.7 mm) galvanized steel, packed five 10 ft (3 m) lengths per carton
  • Base has two 9/32 in (7.1 mm) diameter KOs on centers of approximately 18 in (457 mm) throughout
  • No KOs on 1-1/4 in (32 mm) from each end

Specification

Height
1-3/4 in
Length
4-3/4 in
Material
Steel
Thickness
0.05 in
Voltage Rating
600 VAC
Width
4-3/4 in
Application
Commercial, Office and Residential Application
Standard & Approvals
cULus File E4376 Guide RJBT, Fittings File E41751 Guide RJPR, Base & Blank Cover Meets Article 386 of NEC, Meets Section 12-600 of CEC
Color
Ivory
Finish
Electro Galvanized
