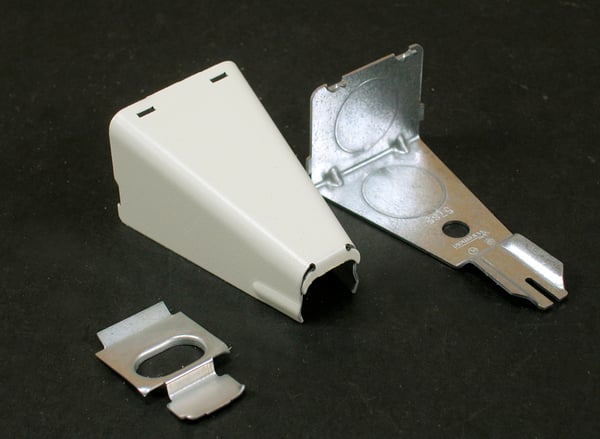

Wiremold® V5785 1-Channel Combination Connector Fitting, 1/2 in, For Use With 500 and 700 Series Raceway, Steel, ScuffCoat™

Selected Data-Spec SheetWiremold® V5785 1-Channel Combination Connector Fitting, 1/2 in, For Use With 500 and 700 Series Raceway, Steel, ScuffCoat™
Data-Spec SheetWiremold® V5785 1-Channel Combination Connector Fitting, 1/2 in, For Use With 500 and 700 Series Raceway, Steel, ScuffCoat™

Documents

Short Description

Wiremold cable management raceway products have been defining the cable raceway category as an alternative to electrical conduit for close to a century. Wiremold Raceway Systems Are Attractive, Cost-Effective Solutions For Bringing Electrical, Communication And A/V Cables And Wires Wherever They'Re Needed, In Virtually Any Type Of Room.

Features

  • Low-profile, unobtrusive appearance
  • Blends with any decor or setting
  • ScuffCoat finish, tough, durable, scratch resistant can be over painted with latex paint
  • Fittings have removable covers which allow easy access to wiring for changes and additions
  • Connects raceway, without offsetting, to any surface-mounted 3 1/4 or 4 in (83mm or 102mm) outlet box with 1/2 in trade size conduit KOs
  • Base has two 1/2 in trade size KOs, one on end and one on bottom
  • Included spring steel bushing eliminates need for conduit nipple and Hick nut for end connection to box
  • When used with 700 Series Raceway, break off cover extension

Specification

Material
Steel
Size
1/2 in
Suitable For Use With
500 and 700 Series Raceway
Application
Commercial, Office and Residential Application
Dimensions
1-5/8 x 1-5/8 in OD x 2-7/16 in L x 1-3/8 in W x 1-5/16 in H
Color
Ivory
Standard & Approvals
cULus E4376 Guide RJBT, Fittings File E4751 Guide RJPR, Meets Article 386 of NEC, Meets Section 12-1600 of CEC
