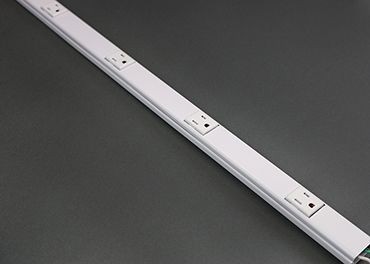

Wiremold® Plugmold® WH20GB506TRGFI6 2000 1-Circuit 3-Wire GFCI Module, 60 in L x 1-9/32 in W x 3/4 in H, 1 Channel, Steel

Pick Up Only
Selected WH20GB506TRGFI6Wiremold® Plugmold® WH20GB506TRGFI6 2000 1-Circuit 3-Wire GFCI Module, 60 in L x 1-9/32 in W x 3/4 in H, 1 Channel, Steel
WH20GB506TRGFI6Wiremold® Plugmold® WH20GB506TRGFI6 2000 1-Circuit 3-Wire GFCI Module, 60 in L x 1-9/32 in W x 3/4 in H, 1 Channel, Steel

Documents

Short Description

Steel Plugmold® multioutlet systems are available in a wide range of lengths and finishes to provide a versatile solution for many applications. Options include versions with single or alternating circuits, standard, or isolated ground receptacles, Snapicoil® harnesses of prewired receptacles, USB charging options, GFCI protection, tamper resistance, plug-in and cord-ended units. Steel Plugmold® Multioutlet Systems are available in black or ivory ScuffCoat™ finish, painted white or gray enamel finish, or stylish.

Features

  • 5 ft GFCI Plugmold® multi-outlet tamper-resistant system
  • Built-in GFCI protection, provides GFCI protection for all outlets on the Plugmold® strip and all devices plugged into them
  • Tamper-resistant receptacle
  • Patented shutter system prevents improper insertion of foreign objects
  • Meets 2017 NEC tamper-resistant requirements
  • Multiple colors and finishes
  • Painted finishes of black, gray, ivory and white, as well as anodized aluminum and stainless steel versions integrate easily with any room decor
  • Self-testing

Specification

Height
3/4 in
Length
60 in
Material
Steel
Mounting Type
Wall
Number of Channels
1
Number of Outlets
10
Outlet Center Distance
6 in
Outlet Configuration
(1) GFCI Receptacle, (9) Single Tamper Resistant Receptacle
Outlet Rating
15 A Receptacle, 125 VAC, 20 A, 60 Hz Class A GFCI Receptacle
Series
2000
Type
1-Circuit 3-Wire
Voltage Rating
125 VAC
Width
1-9/32 in
Application
Residential Kitchens with Multiple Small Appliances and Laboratories Applications
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, Article No. 2017 NEC, Article No. 380 NEC, cULus File No. E15191 Guide PVGT
Cable Type
12 AWG THHN
Color
White
Finish
Enamel
Includes
(1) Coupling, (2) Blank End Fittings
