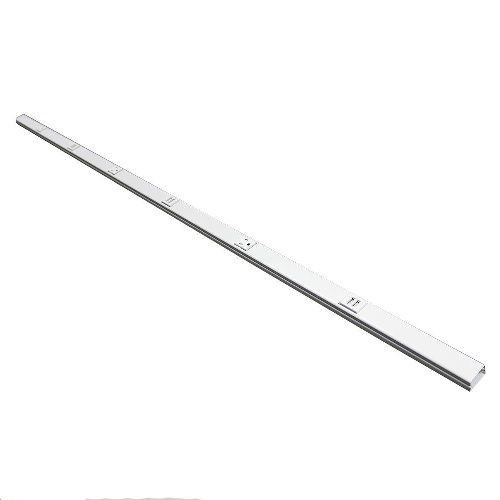

Wiremold® Plugmold® WH20GB509TRUSBA 20GB509TRUSB Multi-Outlet Power Strip, 60 in L x 1-9/32 in W x 3/4 in H, Steel
Wiremold® Plugmold® WH20GB509TRUSBA 20GB509TRUSB Multi-Outlet Power Strip, 60 in L x 1-9/32 in W x 3/4 in H, Steel
SKU: W-MWH20GB509TRUSBA
Manufacturer Part Number: WH20GB509TRUSBA
UPC: 786776184471
Features
- USB charging. Dual-port charging modules share 2.4 amps of charging capacity and can charge multiple phones, tablets or other mobile devices at the same time
- Compact design. Low-profile design installs in tight locations while offering multiple power and USB charging connections
- Receptacle spacing accommodates bulky AC adapters
- Tamper-resistant receptacles. Prevents the insertion of foreign objects into receptacles reducing the risk of shocks or electrocution. Meets 2014 NEC section 406 requirements
- Dry interior locations
- Provides USB charging for up to 6 mobile devices as well as 3 power devices
- 20 A feed through
- GB wiring configuration
- 9 in spacing
- 3-wire, #12 THHN (1 hot, 1 neutral and insulated ground conductor)
- 0.040 in (1.0 mm) steel housing
- Each unit supplied with one (1) coupling and two (2) blank end fittings
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Housing Material | Steel |
| Length | 60 in |
| Mounting | Threaded |
| Number of Outlets | 6 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 20 A |
| Color | White |
| Conductor Size | 12 AWG |
| Dimensions | 60 in L x 1-9/32 in W x 3/4 in H |
| Voltage Rating | 125 VAC |
| Catalog ID | W-MWH20GB509TRUSBA |
| Video | https://www.youtube.com/watch?v=wWswzs1boVU |
| Standard & Approvals | cULus File No. E15191 Listed Guide PVGT |
| Application | Commercial, Hospitality, Office, Education and Transportation |
| Series | 20GB509TRUSB |
| Receptacle Type | Dual USB/Simplex |
