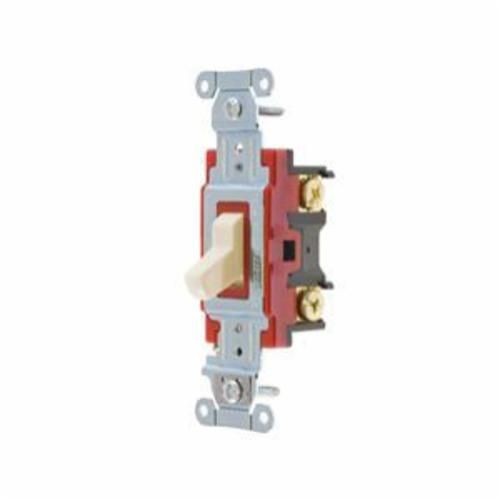

Wiring Device-Kellems 1224LA 4-Way Heavy Duty Toggle Switch, 120/277 VAC, 20 A, 1 hp/2 hp

Selected 1224LAWiring Device-Kellems 1224LA 4-Way Heavy Duty Toggle Switch, 120/277 VAC, 20 A, 1 hp/2 hp
1224LAWiring Device-Kellems 1224LA 4-Way Heavy Duty Toggle Switch, 120/277 VAC, 20 A, 1 hp/2 hp

Documents

Features

  • Steel, zinc plated bridge is corrosion resistant
  • Color coded by amperage makes inspection easy even when installed
  • Strip gauge for accurate wiring
  • 2 position
  • Indoor Dry unless protected by additional means
  • 14 - 10 AWG
  • 1 hp at 120 VAC, 2 hp at 208/240/277 VAC
  • Nylon toggle
  • UL 94-V2 flammability
  • Back and side wire connection
  • 5540 W power
  • Positive snap action

Specification

Material
Thermoset
Operating Cycles
50000
Power Rating
1 hp/2 hp
Series
Pro
Terminal Type
Screw
Type
4-Way Heavy Duty
Voltage Rating
120 to 277 VAC
Standard & Approvals
CSA Certified, Federal Specification W-S-896, NEMA WD-1, UL Listed
Amperage Rating
20 A
Dimensions
4.18 x 1.49 x 1.83 in
Actuator
Toggle
Color
Light Almond
Environmental Conditions
-40 to 75 deg C
