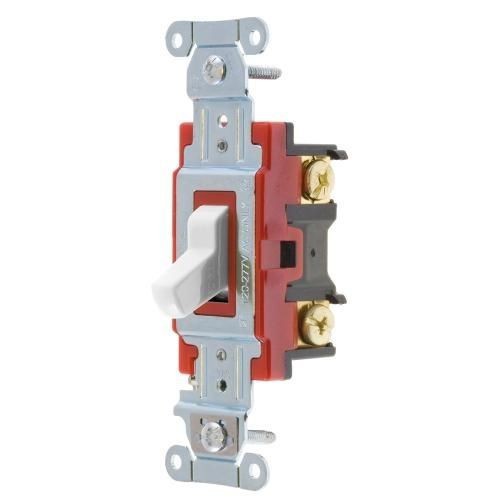

Wiring Device-Kellems Hubbell-PRO 1224W 4-Way General Purpose Heavy Duty Standard Toggle Switch, 120/277 VAC, 20 A, 1/2 hp, 5540 W
Wiring Device-Kellems Hubbell-PRO 1224W 4-Way General Purpose Heavy Duty Standard Toggle Switch, 120/277 VAC, 20 A, 1/2 hp, 5540 W
SKU: HWD1224W
Manufacturer Part Number: 1224W
UPC: 783585835372
Features
- Steel, zinc plated bridge is corrosion resistant
- Color coded by amperage makes inspection easy even when installed
- Strip gauge for accurate wiring
- 2 position
- Indoor dry unless protected by additional means
- 14 to 10 AWG
- 1 hp at 120 VAC, 2 hp at 208/240/277 VAC
- Nylon toggle
- UL 94-V2 flammability
- Back and side wire connection
- 5540 W power
- Positive snap action
Specification
| Material | Thermoset |
|---|---|
| Operating Cycles | 50000 |
| Power Rating | 1/2 hp, 5540 W |
| Terminal Type | Screw |
| Type | 4-Way General Purpose Heavy Duty Standard |
| Voltage Rating | 120 to 277 VAC |
| Application | Industrial |
| Standard & Approvals | CSA Certified, Federal Specification W-S-896, NEMA WD-1, UL 20 Listed |
| Amperage Rating | 20 A |
| Dimensions | 4.18 x 1.49 x 1.83 in |
| Actuator | Toggle |
| Color | White |
| Environmental Conditions | -40 to 75 deg C Temperature |
