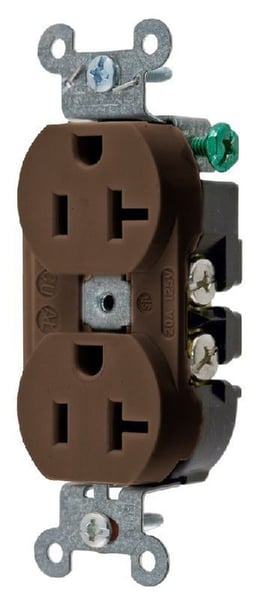

Hubbell, Straight Blade Receptacle, Duplex, 2 Pole, 3 Wire, 20 A, 125 V, Brown
Hubbell, Straight Blade Receptacle, Duplex, 2 Pole, 3 Wire, 20 A, 125 V, Brown
SKU: HWD5352AB
Manufacturer Part Number: 5352AB
UPC: 783585109756
Documents
Features
- 3 wire grounding
- Withstands 2000 V minimum dielectric voltage
- Certified for current interrupting at full rated current
- Slender/compact design
- Smooth face
- Triple wipe contacts
- 14 - 10 AWG copper stranded or solid conductor only
- Terminal wire leads identified in accordance with UL 498
- UL 94 V-2 flammability
- Nylon top and base, PBT base, brass contacts, galvanized steel mounting strap, stainless steel automatic self-grounding staple, zinc plated steel mounting screws
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150 percent of rated current
- Traditional face
Specification
| Grade | Industrial |
|---|---|
| Material | Nylon |
| NEMA Rating | NEMA5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Series | Hubbell-Pro™ |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Back and Side Wire |
| Type | Heavy Duty Grounding |
| Voltage Rating | 125 VAC |
| Standard & Approvals | UL File No. E2186, CSA 22.2 No. 42 File No. 285 |
| Amperage Rating | 20 A |
| Color | Brown |
| Horsepower | 1 hp |
| Dimensions | 1.406 in W x 1.094 in D x 3.281 in H |
