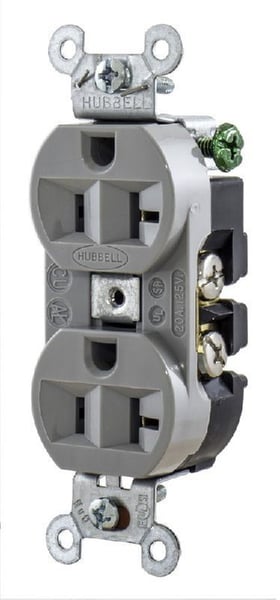

Hubbell, Straight Blade Receptacle, Duplex, 2 Pole, 3 Wire, 20 A, 125 V, Gray
Hubbell, Straight Blade Receptacle, Duplex, 2 Pole, 3 Wire, 20 A, 125 V, Gray
SKU: HWD5362G
Manufacturer Part Number: 5362G
UPC: 783585834993
Documents
Features
- Finder groove nylon face
- RTP base, brass 0.31 in triple wipe power contacts, 0.31 in ground contact, NO 8 to 32 AWG line terminal and ground screws, galvanized steel 0.04 in mounting strap and center assembly staple, stainless steel automatic self-grounding staple, zinc plated steel mounting screws
- Withstands 2000 V minimum dielectric strength
- 14 to 10 AWG copper stranded or solid conductor only
- UL 94V-2 for Top and UL 94V-0 for base flammability
- 2 pole, 3 wire grounding
- Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
- Certified for current interrupting at full rated current
- Ratings are a permanent part of the device
Specification
| Grade | Specification |
|---|---|
| Material | Nylon |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Series | Industrial |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Back and Side Wired |
| Type | Heavy Duty |
| Voltage Rating | 125 VAC |
| Standard & Approvals | UL 498, UL E2186 Listed, CSA C22.2 No. 42, CSA 285 Certified, WD-6 Compliant, Guide RTRT Federal Specification WC596G |
| Amperage Rating | 20 A |
| Color | Gray |
| Horsepower | 1 hp |
| Dimensions | 1.41 in W x 1.09 in D x 3.28 in H |
