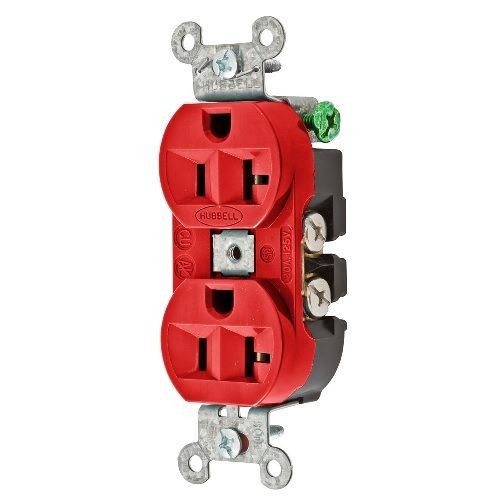

Wiring Device-Kellems Hubbell-PRO 5362R Duplex Heavy Duty Standard Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
Wiring Device-Kellems Hubbell-PRO 5362R Duplex Heavy Duty Standard Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
SKU: HWD5362R
Manufacturer Part Number: 5362R
UPC: 783585127774
Documents
Features
- Steel mounting strap, self-grounding
Specification
| Material | Nylon |
|---|---|
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Temperature Rating | -40 to 75 deg C |
| Type | Duplex Heavy Duty Standard |
| Voltage Rating | 125 VAC |
| Application | Indoor Applications |
| Standard & Approvals | ARRA, Buy American Act Compliant, CSA File No. 285, NEMA WD1, WD5, WD6, UL 498, File No. E2186 |
| Amperage Rating | 20 A |
| Dimensions | 1.41 in W x 1.09 in D x 3.28 in H |
| Color | Red |
| Horsepower | 1 hp |
| Grade | Industrial/Specification |
| Terminal Type | Back and Side Wired |
