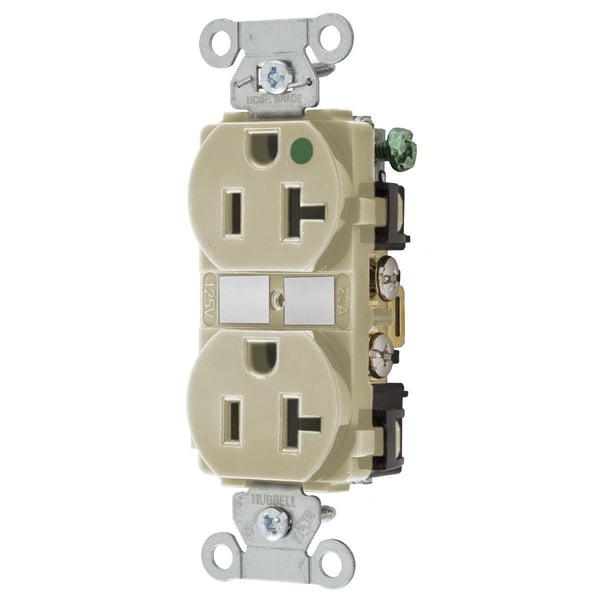

Wiring Device-Kellems Hubbell-PRO™ 8300IV 1-Phase Duplex Self-Grounding Standard Traditional Screw Mount Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
Wiring Device-Kellems Hubbell-PRO™ 8300IV 1-Phase Duplex Self-Grounding Standard Traditional Screw Mount Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
SKU: HWD8300IV
Manufacturer Part Number: 8300IV
UPC: 783585197340
Documents
Features
- High impact resistant face with circuit ID marking area
- Steel mounting strap
- Brass power and ground contact
- Plated steel clamping plate
- Galvanized steel mounting strap
- Stainless steel automatic self grounding staple
- Zinc plated steel mounting screw
- Certified for current interrupting at full rated current
- Withstands 2000 VAC minimum dielectric voltage
- 12 to 10 AWG copper stranded or solid conductor
- Terminals identified in accordance with UL 498 and CSA
- Screw mounted
Specification
| Grade | Hospital |
|---|---|
| Material | Nylon |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 20 A |
| Color | Ivory |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Screw |
| Voltage Rating | 125 VAC |
| Standard & Approvals | UL 498 File No. E2186, CSA 285 C22.2 No. 42, Federal Specification WC596, NEMA WD1/WD5 |
| Horsepower | 1 hp |
| Application | Dry Indoor Applications |
| Type | 1-Phase Duplex Self-Grounding Standard Traditional Screw Mount |
| Dimensions | 3.28 x 1.57 x 1.15 in |
| Catalog ID | HWD8300IV |
