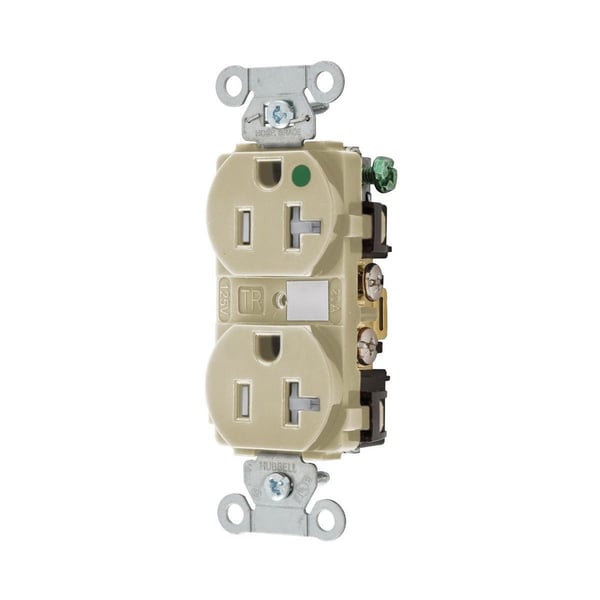

Wiring Device-Kellems Hubbell-PRO 8300IVTRA Duplex Heavy Duty Standard Tamper Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
Wiring Device-Kellems Hubbell-PRO 8300IVTRA Duplex Heavy Duty Standard Tamper Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
SKU: HWD8300IVTRA
Manufacturer Part Number: 8300IVTRA
UPC: 783585542300
Documents
Short Description
Features
- Circuit ID marking area on hospital grade
- Steel mounting strap, self-grounding
- Exclusive nickel plated bypass contact design increases contact pressure, lowering the operating temperature
- Four point grounding system provides redundant grounding for low resistance ground continuity in high abuse areas
- Impact resistant deep face design prevents breakage
- Triple wipe power contacts
- Best in class TR mechanism
- Tested to UL hospital grade test standards for impact resistance and abrupt plug pull out
Specification
| Grade | Hospital |
|---|---|
| Material | Nylon |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 20 A |
| Catalog ID | HWD8300IVTRA |
| Color | Ivory |
| Dimensions | 3.28 x 1.57 x 1.15 in |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Back and Side Wired/Screw |
| Type | Duplex Heavy Duty Standard Tamper Resistant |
| Voltage Rating | 125 VAC |
| Application | Schools and Universities, Hotels and Convention Centers, Assisted Living Facilities, Transportation Centers and Military Barracks |
| Standard & Approvals | ARRA, Buy American Act Compliant, CSA Certified, Federal Specification WC596, NEMA WD6, UL 498 |
| Horsepower | 1 hp |
