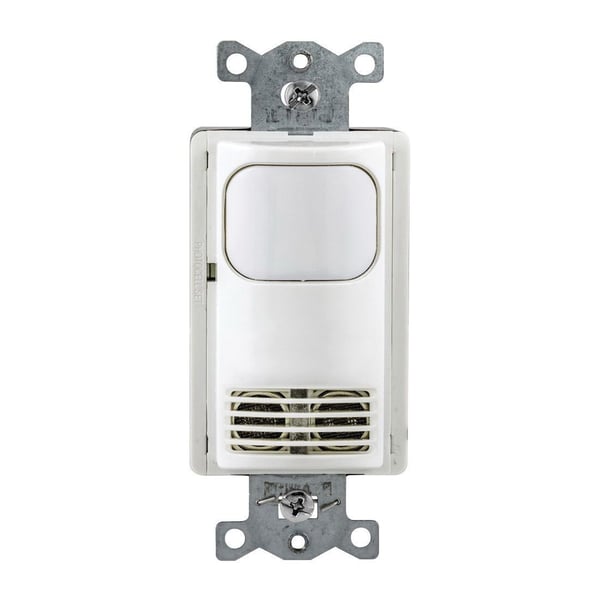

Wiring Device-Kellems H-MOSS® AD2000W1N Adaptive Dual 1-Circuit Occupancy Vacancy Sensor Switch With Photocell, 120/277 VAC, Passive Infrared/Ultrasonic Sensor, 1000 sq-ft Coverage, Wall Mount

Selected Wiring Device-Kellems H-MOSS® AD2000W1N Adaptive Dual 1-Circuit Occupancy Vacancy Sensor Switch With Photocell, 120/277 VAC, Passive Infrared/Ultrasonic Sensor, 1000 sq-ft Coverage, Wall Mount
Wiring Device-Kellems H-MOSS® AD2000W1N Adaptive Dual 1-Circuit Occupancy Vacancy Sensor Switch With Photocell, 120/277 VAC, Passive Infrared/Ultrasonic Sensor, 1000 sq-ft Coverage, Wall Mount

Documents

Short Description

Combines PIR and US technology, minimizing the risk of lights turning ON when the space is unoccupied. Once occupancy is detected by both technologies within the space lights are turned ON, only one technology is necessary to keep the lights ON. Adaptive technology provides better control. Hubbell patented breakthrough in advanced control feature smart microprocessors constantly monitoring the controlled area and adjust the sensitivity and timer based on environmental history. The optimum choice when performance is paramount.

Features

  • Steel mounting strap
  • High impact molded plastics
  • Color matching tamper resistant lens
  • Zero arc point switching
  • Compatible with CFL/LED and motor loads
  • Dual relay version for bi-level switching or lighting/fan control applications
  • Photocell for extra energy savings

Specification

Lamp Type
Fluorescent/Incandescent
Material
Plastic
Mounting Type
Wall
Power Rating
800/1000/1800 W
Sensor Type
Passive Infrared/Ultrasonic
Series
Adaptive Dual
Temperature Rating
0 to 40 deg C
Time Delay
4 to 30 min
Type
1-Circuit
Voltage Rating
120 VAC
Standard & Approvals
cULus Listed, UL Listed, CSA Certified, Arra, BuyAmerican, ASHRAE 90.1 Compliant
Dimensions
1.71 in W x 1.69 in D x 4.13 in H
Color
White
Connection Type
Threaded
Control Output
Automatic On
Coverage
1000 sq-ft
