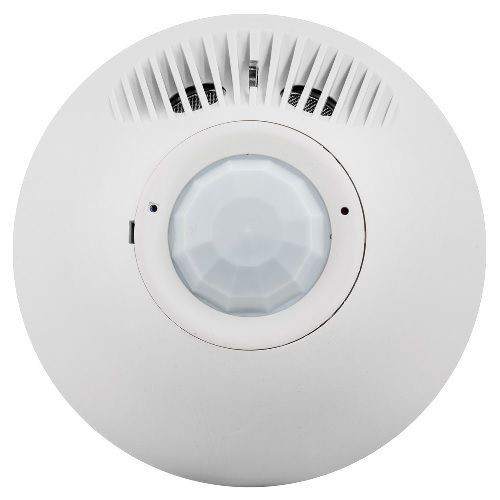

Wiring Device-Kellems H-MOSS® ATD500C Dual Technology Ceiling Mount Occupancy Sensor, 24 VDC, Passive Infrared/Ultrasonic Sensor, 500 sq-ft Coverage, 180 deg, Ceiling Mount

Selected Wiring Device-Kellems H-MOSS® ATD500C Dual Technology Ceiling Mount Occupancy Sensor, 24 VDC, Passive Infrared/Ultrasonic Sensor, 500 sq-ft Coverage, 180 deg, Ceiling Mount
Wiring Device-Kellems H-MOSS® ATD500C Dual Technology Ceiling Mount Occupancy Sensor, 24 VDC, Passive Infrared/Ultrasonic Sensor, 500 sq-ft Coverage, 180 deg, Ceiling Mount

Documents

Short Description

Dual technology occupancy sensors combine both passive infrared (PIR) and ultrasonic (US) technologies for maximum reliability. Because US and PIR need to both detect occupancy to turn lighting on, dual technology sensors minimize the risk of lights coming on when the space is unoccupied false triggering. Continued detection by only one technology then keeps lighting on as necessary. Dual technology sensors offer the best performance for most applications.

Features

  • Coverage 500 sq-ft (180 deg)
  • Low voltage sensor
  • Minimize the risk of false triggering; lights turning ON when the space is un-occupied
  • Offer the best performance for most applications
  • Office white ABS enclosure blends with ceiling tile
  • Red LED indicates passive infrared detection and green LED indicates ultrasonic detection
  • "Install and Forget" operation and auto-adjusting adaptive technology eliminates manual adjustments

Specification

Lamp Type
LED
Material
ABS
Mounting Type
Ceiling
Response Frequency
32 kHz
Sensor Type
Passive Infrared/Ultrasonic
Series
ATD
Temperature Rating
32 to 104 deg F
Time Delay
8 to 40 min Adaptive, 8 sec Test
Type
Dual Technology
Viewing Angle
180 deg
Voltage Rating
24 VDC
Application
Office, Conference Room, Classroom and Hall
Standard & Approvals
cULus Listed, UL 244A, ASHRAE 90.1, CEC Title 24 Compliant, UL 94 V0
Amperage Rating
33 mA
Dimensions
4-1/2 in Dia x 1-1/2 in D
Color
Off-White
Connection Type
Lead Wire
Coverage
500 sq-ft
