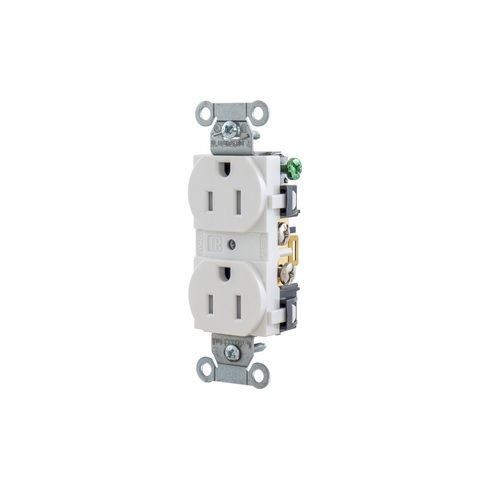

Wiring Device-Kellems BR15WHITR Duplex Self-Grounding Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Wiring Device-Kellems BR15WHITR Duplex Self-Grounding Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
SKU: HWDBR15WHITR
Manufacturer Part Number: BR15WHITR
UPC: 783585144092
Features
- 0.03 in brass power contact
- 0.04 in galvanized steel mounting strap
- Stainless steel auto ground clip
- Steel, zinc plated mounting screw
- Withstands 2000 VAC dielectric voltage
- Certified for current interrupting at full rated current
- Terminals identified in accordance with UL 498 (brass, white, green)
- 14 to 10 AWG solid or stranded copper conductor terminal accommodation
- Ratings are a permanent part of the device product identification
- Tamper resistant shutter complies with national electrical code requirements
- Smooth face
- Wrap around galvanized steel straps
- Triple wipe contacts
- Traditional duplex receptacle
- Indoor dry unless protected by additional means
Specification
| Grade | Commercial/Specification |
|---|---|
| Material | Composite/Thermoplastic |
| NEMA Rating | NEMA 5-15R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 15 A |
| Color | White |
| Terminal Type | Back and Side Wired |
| Voltage Rating | 125 V |
| Standard & Approvals | UL 498, File No. E2186 Listed, UL 94-V-2 Flammability Rating, CSA C22.2, No. 42 Certified, NEMA WD6, WD1, WD5 Compliant |
| Type | Duplex Self-Grounding |
| Temperature Rating | -40 to 75 |
| Dimensions | 3.281 in H x 1.322 in W x 1.147 in D |
| Catalog ID | HWDBR15WHITR |
