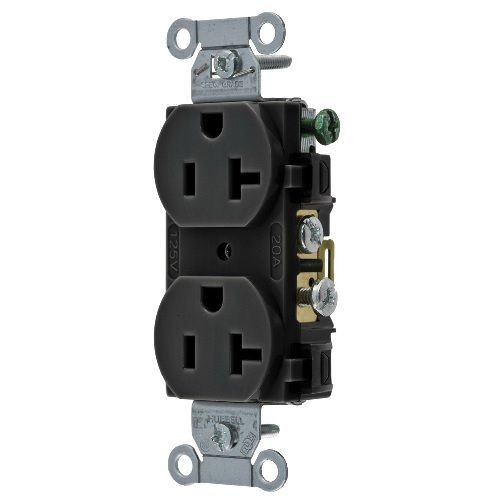

Wiring Device-Kellems CR20BLK Duplex Self-Grounding Standard Traditional Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Black
Wiring Device-Kellems CR20BLK Duplex Self-Grounding Standard Traditional Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Black
SKU: HWDCR20BLK
Manufacturer Part Number: CR20BLK
UPC: 783585900193
Documents
Features
- Easy access split circuit tab
- Fork terminal capable
- Smooth face
- Triple wipe contacts
Specification
| Grade | Commercial/Specification |
|---|---|
| Material | Composite/Thermoplastic |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 20 A |
| Catalog ID | HWDCR20BLK |
| Color | Black |
| Dimensions | 1.32 x 0.83 x 3.28 in |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Back/Side Wired |
| Type | Duplex Self-Grounding Standard Traditional |
| Voltage Rating | 125 VAC |
| Standard & Approvals | ARRA, Buy American Act, RoHS Compliant, UL 498 File No. E2186, CSA C22.2 No. 42 File 285, Federal Specification WC596, UL 94-V-2 Flammability Rating, NEMA WD1, WD5, WD6 |
| Horsepower | 1 hp |
