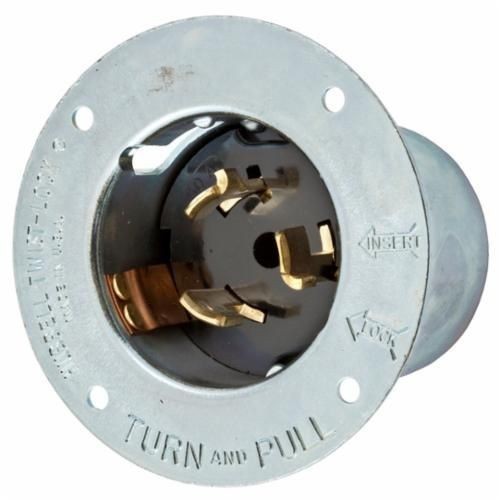

Wiring Device-Kellems Twist-Lock® CS6375 1-Phase Extra Heavy Duty Grounding Flanged Inlet, 125/250 VAC, 50 A, 3 Poles, 4 Wires, Black/Metallic
Wiring Device-Kellems Twist-Lock® CS6375 1-Phase Extra Heavy Duty Grounding Flanged Inlet, 125/250 VAC, 50 A, 3 Poles, 4 Wires, Black/Metallic
SKU: HWDCS6375
Manufacturer Part Number: CS6375
UPC: 783585828206
Documents
Features
- Metallic flanged casing provides maximum strength and protection
- Thermoset interior provides superior heat resistance
- Zinc plated steel casing
Specification
| Grade | Industrial |
|---|---|
| Number Of Poles | 3 |
| Number of Wires | 4 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 50 A |
| Enclosure | IP20 |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Pressure Screw |
| Type | 1-Phase Extra Heavy Duty Grounding |
| Voltage Rating | 125/250 VAC |
| Application | Dry Locations and Indoor Applications |
| Standard & Approvals | UL 498 Listed, CSA 22.2 No.0.42, ARRA, Buy American Act Compliant |
| Color | Black/Metallic |
| Catalog ID | HWDCS6375 |
| Material | Brass/Composite/Thermoplastic/Zinc Plated Steel |
| Dimensions | 2.17 x 3.5 x 2.62 in |
