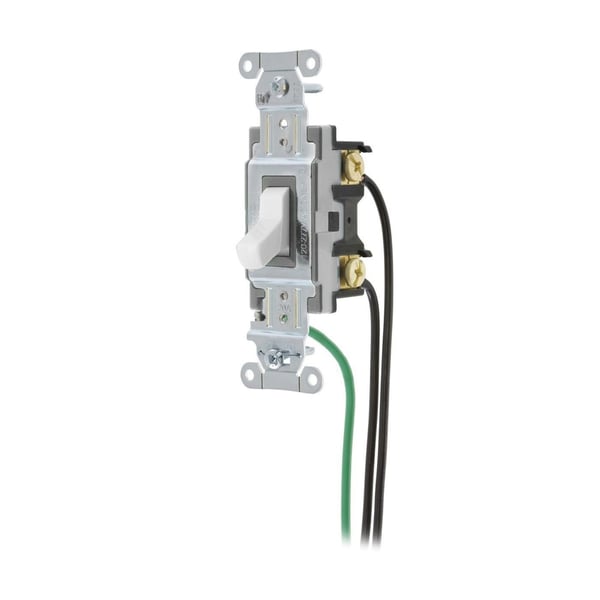

Wiring Device-Kellems CSL220W 2-Position Specification/Commercial Grade Standard Toggle Switch With 8 in 12 AWG THHN Cable, 120/277 VAC, 20 A, 5540 W/1 to 2 hp
Wiring Device-Kellems CSL220W 2-Position Specification/Commercial Grade Standard Toggle Switch With 8 in 12 AWG THHN Cable, 120/277 VAC, 20 A, 5540 W/1 to 2 hp
SKU: HWDCSL220W
Manufacturer Part Number: CSL220W
UPC: 783585187501
Documents
Features
- Engineered thermoplastic housing is impact resistant for heavy duty commercial environments
- Stainless steel automatic grounding staple assures grounding continuity between mounting strap and metal wall box
- One piece bridge with integral grounding terminal with #8 brass screw allows compliance to NEC
- Steel zinc plated mounting strap provides protection against corrosion
- Thread cleaning captive mounting screw
- Prominent amperage marking on mounting strap allows easy identification of rating
- Back wire entrance points for terminations accept two wires for feed-through capability avoiding pigtailing
- Large brass binding head screws with deep slots secure wire connections
- Strip gauge for accurate wiring
- Heavy duty nylon toggle resists abuse and chemical attack making it suitable for use in the toughest environments
- Elastomer rocker assures quiet operation and precise timing
- Permanently lubricated assembly provides long life and trouble free operation
- Copper alloy spring contact arm and terminal plate assures proper contact alignment reducing heat rise
- Silver alloy contacts reduce contact erosion and prevent welding, providing long life
- Labor saving
Specification
| Material | Thermoplastic |
|---|---|
| Mounting | Threaded |
| Number Of Poles | 2 |
| Operating Cycles | 50000 |
| Power Rating | 5540 W/1 to 2 hp |
| Type | 2-Position Specification/Commercial Grade Standard |
| Voltage Rating | 120 to 277 VAC |
| Application | General Purpose AC and Indoor Applications |
| Amperage Rating | 20 A |
| Actuator | Toggle |
| Color | White |
| Environmental Conditions | -40 to 75 deg C Temperature |
| Dimensions | 4.18 x 1.34 x 1.83 in |
| Standard & Approvals | ARRA, Buy American Act Compliant, CSA, NEC Certified, Federal Specification WS896, NEMA WD1, UL 20 |
| Terminal Type | Pre-Wired Lead |
