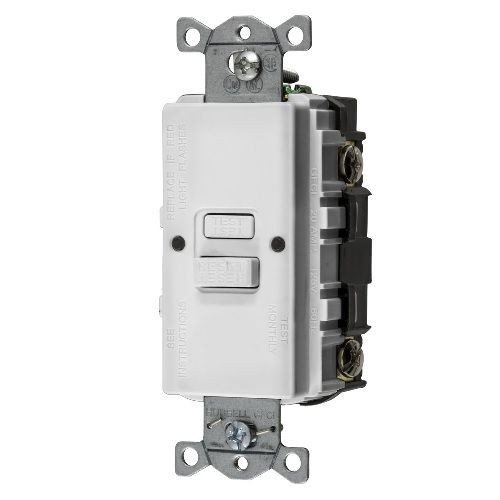

Wiring Device-Kellems AUTOGUARD® Style Line® GFBFST20W Blank Face Heavy Duty Standard Self Test GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White

Selected Wiring Device-Kellems AUTOGUARD® Style Line® GFBFST20W Blank Face Heavy Duty Standard Self Test GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Wiring Device-Kellems AUTOGUARD® Style Line® GFBFST20W Blank Face Heavy Duty Standard Self Test GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White

Documents

Short Description

Hubbell AUTOGUARD® GFR products continually test and monitor for "people protection capability" automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. Also, visual indicators are clearly provided on the device face representing "power status", "trip condition", "ground fault condition" and "end of life status".

Features

  • Patented AUTOGUARD® self-test technology includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost
  • Internal back wiring clamp and guide for quick and secure termination

Specification

Frequency Rating
60
Grade
Commercial
Material
Composite/Nylon/Thermoplastic
NEMA Rating
NEMA 5-20R
Number Of Poles
2
Number of Wires
3
Minimum Order Qty
1
Order Interval
1
Amperage Rating
20 A
Color
White
Dimensions
1.75 in W x 1.47 in D
Temperature Rating
-30 to 150 deg F
Type
Blank Face Heavy Duty Standard Self Test
Voltage Rating
125 VAC
Application
Dry Locations and Indoor Applications
Standard & Approvals
ANSI 73, UL 498, 943, File No. E41978, CSA Certified, NEMA WD6, NEC, CEC, RoHS, ARRA, Buy American Act Compliant
Horsepower
1 hp
Terminal Type
Back/Side Wired Screw
Catalog ID
HWSGFBFST20W
