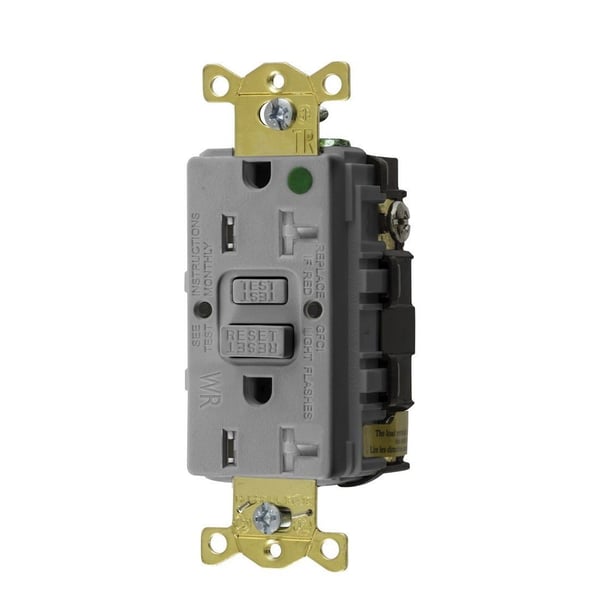

Wiring Device-Kellems AUTOGUARD® Style Line GFTWRST83GY Decorator Duplex Heavy Duty Standard Straight Blade Self-Test Tamper/Weather Resistant GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
Wiring Device-Kellems AUTOGUARD® Style Line GFTWRST83GY Decorator Duplex Heavy Duty Standard Straight Blade Self-Test Tamper/Weather Resistant GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
SKU: HWDGFTWRST83GY
Manufacturer Part Number: GFTWRST83GY
UPC: 783585485362
Features
- Patented shutter design for tamper-resistant protection
- UV and corrosion resistance for harsh and damp applications
- Patented AUTOGUARD self-test technology
- Protects against line and load reversal, no power to the face or downstream if device is miswired
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Grade | Commercial/Hospital |
| Material | Composite/Nylon/Thermoplastic |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 20 A |
| Catalog ID | HWDGFTWRST83GY |
| Color | Gray |
| Dimensions | 1.75 in W x 1.47 in D |
| Temperature Rating | -30 to 150 deg F |
| Terminal Type | Back and Side Wired/Screw |
| Type | Decorator Duplex Heavy Duty Standard Straight Blade Self-Test Tamper/Weather Resistant |
| Voltage Rating | 125 VAC |
| Application | Dry Locations and Indoor Applications |
| Standard & Approvals | ANSI 73, UL 498, 943, File No. E41978, CSA Certified, NEMA WD6, NEC 406.12, 406.9, CEC, RoHS, ARRA, Buy American Act Compliant |
| Horsepower | 1 hp |
