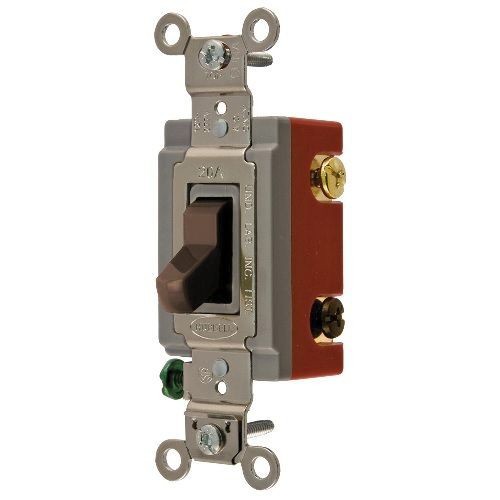

Wiring Device-Kellems HBL® HBL1223 3-Way Extra Heavy Duty General Purpose Standard Toggle Switch, 120/277 VAC, 20 A, 5540 W, 2-Position/SPDT
Wiring Device-Kellems HBL® HBL1223 3-Way Extra Heavy Duty General Purpose Standard Toggle Switch, 120/277 VAC, 20 A, 5540 W, 2-Position/SPDT
SKU: HWDHBL1223
Manufacturer Part Number: HBL1223
UPC: 783585431765
Documents
Features
- Large brass binding head screws with deep slots
- Abuse resistant nylon toggle
- Strip gauge for accurate wiring
Specification
| Material | Thermoset |
|---|---|
| Mounting | Threaded |
| Number Of Poles | 1 |
| Operating Cycles | 50000 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Actuator | Toggle |
| Amperage Rating | 20 A |
| Color | Brown |
| Contact Configuration | 2-Position/SPDT |
| Dimensions | 4.06 x 1.31 x 1.87 in |
| Power Rating | 5540 |
| Terminal Type | Back/Side Wired |
| Voltage Rating | 120 to 277 VAC |
| Application | Industrial Applications and Indoor Dry Environment |
| Standard & Approvals | ARRA, Buy American Act Compliant, CSA Certified, UL 94-V-2 Flammability Rating, UL 20, Federal Specification W-S-896 |
| Environmental Conditions | -40 to 75 deg C Operating Temperature |
| Catalog ID | HWDHBL1223 |
| Type | 3-Way Extra Heavy Duty General Purpose Standard |
