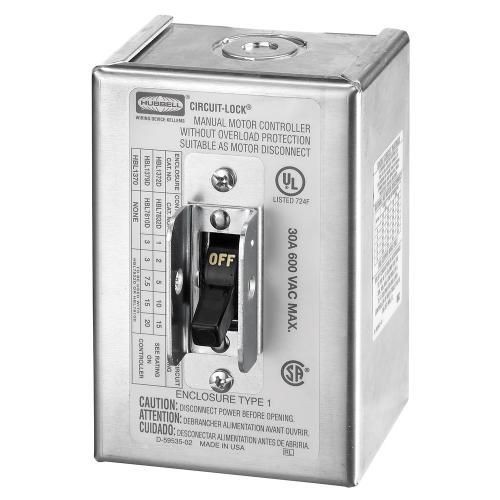

Wiring Device-Kellems Circuit-Lock® HBL1372D Disconnect Switch, 600 VAC, 30 A, 18000 W

Selected Wiring Device-Kellems Circuit-Lock® HBL1372D Disconnect Switch, 600 VAC, 30 A, 18000 W
Wiring Device-Kellems Circuit-Lock® HBL1372D Disconnect Switch, 600 VAC, 30 A, 18000 W

Documents

Short Description

For use in nearly any industrial environment, Hubbell® AC Manual Motor Controllers/Disconnects can be easily integrated into equipment and enclosures for either box or panel-mount installation. Rated "Suitable as Motor Disconnect," they feature a quick make and slow break operation that ensures reliability and long life. Hubbell® AC Manual Motor Controllers/Disconnects have a 10000 A high fault short circuit withstand rating and a heat resistant thermoset body that provides resistant to arc tracking and superior dielectric strength. The 30 A controller features a brass terminal screw clamping plate for secure back or side wiring, and the 60 A version is available with front or back wiring.

Features

  • All switches are suitable as a motor disconnect
  • Strong On/Off action with a quick make and slow break operation
  • Heat resistant thermoset body provides superior dielectric strength
  • 2 hp at 120 VAC 1-phase, 5 hp at 240 VAC, 10 hp at 480 VAC, 15 hp at 600 VAC 3-phase power rating

Specification

Material
Aluminum
Mounting
Threaded
Number Of Poles
2
Operating Cycles
10000
Minimum Order Qty
1
Order Interval
1
Actuator
Toggle
Amperage Rating
30 A
Enclosure
NEMA 1
Enclosure Type
NEMA 1
Power Rating
18000 W
Temperature Rating
-40 deg C
Voltage Rating
600 V
Standard & Approvals
UL 508, CSA Certified
Application
Motor Starting Without Overload Protection Applications
Dimensions
4.52 x 3.2 x 3.15 in
Connection
Back/Side Wired
Catalog ID
HWDHBL1372D
