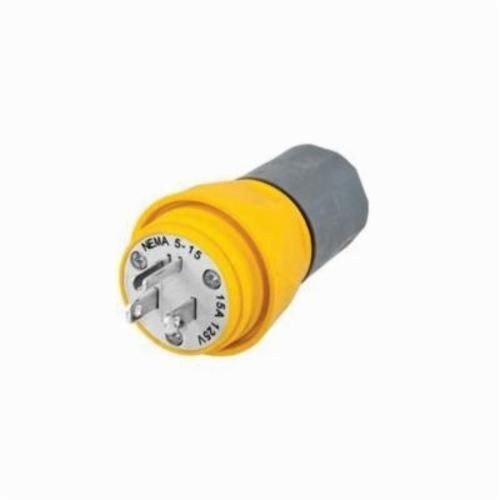

Wiring Device-Kellems Elastogrip® HBL14W47A Standard Watertight Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Wiring Device-Kellems Elastogrip® HBL14W47A Standard Watertight Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
SKU: HWDHBL14W47A
Manufacturer Part Number: HBL14W47A
UPC: 783585131191
Documents
Features
- Corrosion resistant
- Grounding plug
- Cord mounted
- 18 to 12 AWG stranded copper conductor
- Withstands 2000 VAC dielectric voltage
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Nylon blade holder and cord clamp, polycarbonate retainer, brass contact blade and ground screw copper alloy ground contact blade, nickel plated brass terminal screw
- Multiple drive U-drive fast lead body assembly screws
- Neoprene bushing keeps water and dust out
- Color coded Kellems GOTCHA® rings provide increased cord retention
- Thermoplastic elastomer housing resists weathering caused by ultraviolet rays and ozone better than rubber
- Three separate transparent wiring chambers allow for visual inspection
Specification
| Grade | Commercial/Industrial |
|---|---|
| NEMA Rating | NEMA 5-15P |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 15 A |
| Catalog ID | HWDHBL14W47A |
| Color | Yellow |
| Cord Diameter | 3/8 to 5/8 in |
| Dimensions | 1.85 in Dia x 3.16 in L |
| Enclosure | NEMA 4/4X/12/6/6P |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Threaded |
| Voltage Rating | 125 VAC |
| Horsepower | 0.5 hp |
| Material | Composite/Elastomer |
| Standard & Approvals | UL 498, ANSI Specified, CSA C22.2 No. 42 Certified, NEMA WD1, WD6 Compliant |
| Type | Standard Watertight |
