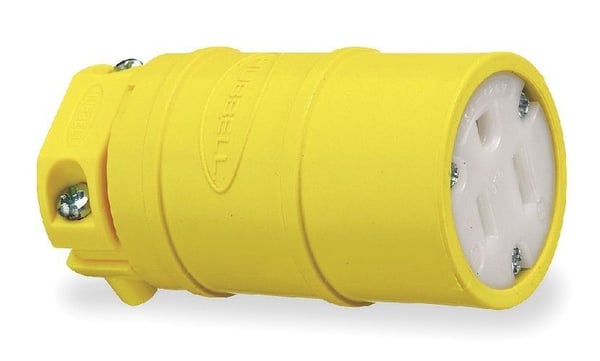

Hubbell, Elastogrip Connector, 2 Pole, 3 Wire, 15 Ampere, 125 Volts, Dust-Tight, Yellow
Hubbell, Elastogrip Connector, 2 Pole, 3 Wire, 15 Ampere, 125 Volts, Dust-Tight, Yellow
SKU: HWDHBL1547
Manufacturer Part Number: HBL1547
UPC: 783585013039
Features
- Thermoplastic elastomer housing
- Dust and moisture seal around cord
- Polycarbonate-clear retainer material
- Nylon-yellow cord clamp material
- 0.06 in brass contact blades material, 0.04 in copper alloy ground contact blade material
- NO 8 to 32 brass, multiple drive terminal screw material
- Nylon-natural contact holder material, 0.04 in (1.0) copper alloy power contacts material
- With stands 2000 V minimum dielectric voltage
- Certified for current interrupting at full rated current
- Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
- Terminals identified in accordance with UL 498 (brass, white, green)
- NO 14 to 10 AWG copper stranded or solid conductor only
- Ratings are a permanent part of the device
- UL 94 HB or better
Specification
| Material | PVC |
|---|---|
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Screw |
| Amperage Rating | 15 A |
| Color | Yellow |
| Horsepower | 0.5 hp |
| Cord Diameter | 0.3 to 0.655 in |
| Dimensions | 3 x 1.61 x 3 in |
| Standard & Approvals | UL Listed to UL 498 File E1706, CSA Certified to C22.2 No. 42 File 280 Certified |
| Voltage Rating | 125 VAC |
| NEMA Rating | NEMA 5-15R |
| Grade | Industrial/Commercial |
| Enclosure | IP20 |
