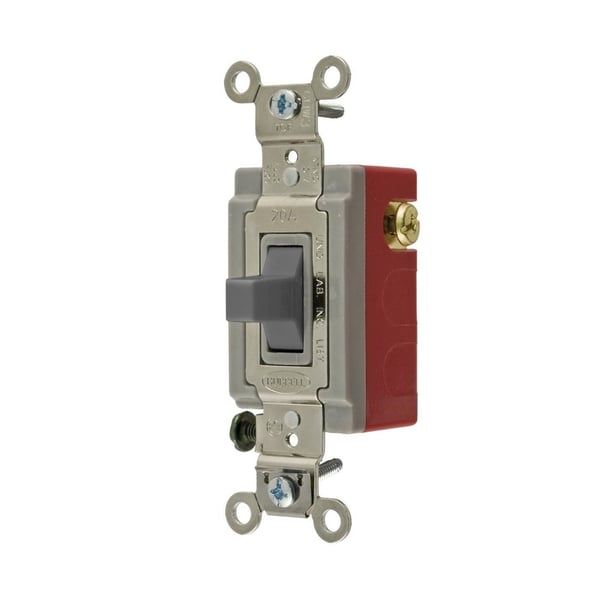

Wiring Device-Kellems HBL® HBL1557GY 3-Position Extra Heavy Duty Industrial/Specification Grade Standard Toggle Switch, 120/277 VAC, 20 A, 5540 W/1 to 2 hp, SPDT
Wiring Device-Kellems HBL® HBL1557GY 3-Position Extra Heavy Duty Industrial/Specification Grade Standard Toggle Switch, 120/277 VAC, 20 A, 5540 W/1 to 2 hp, SPDT
SKU: HWDHBL1557GY
Manufacturer Part Number: HBL1557GY
UPC: 783585432847
Documents
Features
- Abuse resistant nylon toggle
- Large brass binding head screws with deep slots
- Strip gauge for accurate wiring
- One piece design engineered thermoset base for superior heat dissipation
- One piece design high impact resistant thermoplastic front for heavy duty industrial environments
- Stainless steel automatic grounding clip assures grounding continuity between mounting strap and metal wall box
- One piece bridge with integral grounding terminal with #8 brass screw allows compliance to NEC
- Steel nickel plated mounting strap provides a superior corrosion resistant finish
- Thread cleaning captive mounting screw
- Prominent amperage marking on mounting strap allows easy identification of rating
- Back wire entrance points for terminations accept two wires for feed-through capability avoiding pigtailing
- Elastomer rocker assures quiet operation and precise timing
- Permanently lubricated assembly provides long life and trouble free operation
- One piece rivetless copper alloy spring contact arm and terminal plate assures proper contact alignment reducing heat rise
- Large silver alloy contacts reduce contact erosion and prevent welding, providing long life
Specification
| Material | Thermoset |
|---|---|
| Mounting | Threaded |
| Number Of Poles | 1 |
| Operating Cycles | 50000 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Actuator | Momentary/Toggle |
| Amperage Rating | 20 A |
| Catalog ID | HWDHBL1557GY |
| Color | Gray |
| Contact Configuration | SPDT |
| Dimensions | 4.06 x 1.31 x 1.89 in |
| Environmental Conditions | -40 to 75 deg C Temperature |
| Power Rating | 5540 W/1 to 2 hp |
| Terminal Type | Back/Side Wired/Screw |
| Type | 3-Position Extra Heavy Duty Industrial/Specification Grade Standard |
| Voltage Rating | 120 to 277 VAC |
| Application | General Purpose AC and Indoor Applications |
| Standard & Approvals | ARRA, Buy American Act Compliant, CSA Certified, Federal Specification WS896, NEMA WD1, UL 20 |
