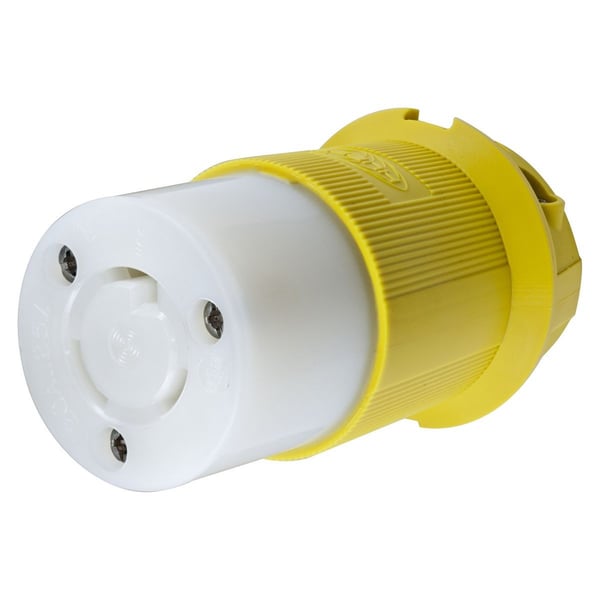

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL23CM13 Female Grounding Heavy Duty Insulated Standard Locking Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL23CM13 Female Grounding Heavy Duty Insulated Standard Locking Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
SKU: HWDHBL23CM13
Manufacturer Part Number: HBL23CM13
EAN: 0783585038100
UPC: 783585038100
Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance
- Superior cord grip design protects terminations from excess strain
- Integral dust shield protects wiring chamber from dust or contaminants
- Yellow nylon cord clamp and clear polycarbonate terminal retainer
- 0.08 in steel nickel plated terminal clamp, #10-32 brass (white finish on neutral screw when used) multi-drive terminal screw, green finish multi-drive ground screw, steel, zinc plated multi-drive cord clamp screw arterial and body holding screw
- Stainless steel, multi-drive cord clamp screw body holding screw and natural white nylon body contact carrier
- Brass contact spring and spring binding plate
- 0.031 in brass power contact
- Withstands 2000 VAC minimum dielectric voltage
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- 20 A, 12 AWG terminal accommodation
- Corrosion resistant
- Cord mounted
- Indoor dry unless protected by additional mean environmental conditions
- 12 to 10 AWG conductor
Specification
| Temperature Rating | -40 to 75 deg C |
|---|---|
| Terminal Type | Pressure Screw |
| Type | Female Grounding Standard |
| Voltage Rating | 125 VAC |
| Application | Heavy Duty Industrial Applications |
| Standard & Approvals | UL 94/498, Federal Specification W-C-596, CSA C22.2 No. 42, NEMA WD1/WD5 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 20 A |
| Catalog ID | HWDHBL23CM13 |
| Color | Yellow |
| Cord Diameter | 0.36 to 0.93 in |
| Dimensions | 2.26 in Dia x 3.86 in L |
| Enclosure | IP20 |
| Grade | Marine |
| Material | Composite/Nylon |
| NEMA Rating | NEMA L5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| EANUCC13 | 0783585038100 |
