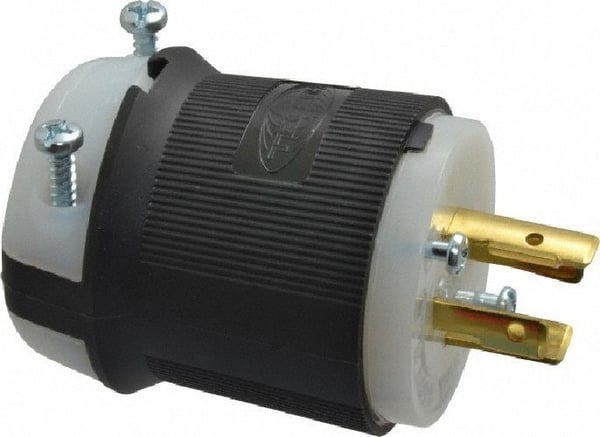

Hubbell, Twist Lock Plug, 3 Pole, 4 Wire, 20 A, 250 V, NEMA L15-20P, Black & White
Hubbell, Twist Lock Plug, 3 Pole, 4 Wire, 20 A, 250 V, NEMA L15-20P, Black & White
SKU: HWDHBL2421
Manufacturer Part Number: HBL2421
UPC: 783585038193
Features
- Superior cord grip design protects terminations from excess strain
- Clear, funnel shaped wire entry for ease of termination
- Integral dust shield protects wiring chamber from dust or contaminants
- Natural white nylon blade holder material, cord clamp material
- Clear polycarbonate terminal retainer material
- Brass blade material, terminal screw material, ground screw material
- Steel nickel plated terminal clamp material
- Steel, zinc plated cord clamp screw material, body holding screw material
- 16 to 8 AWG stranded copper wire only terminal accommodation
- NO 10-32 brass (phillips-slotted/Robertson) terminal screws
Specification
| Grade | Industrial |
|---|---|
| Material | Nylon |
| NEMA Rating | NEMA L15-20R |
| Number Of Poles | 3 |
| Number of Wires | 4 |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Screw |
| Type | Grounding |
| Voltage Rating | 250 VAC |
| Amperage Rating | 20 A |
| Dimensions | 2.33 x 2.33 x 2.75 in |
| Color | Black/White |
| Cord Diameter | 0.35 to 1.15 in |
| Enclosure | IP20 |
| Horsepower | 3 hp |
| Standard & Approvals | UL 498, CSA C22.2 No.42, Federal Spec W-C-596 |
| Application | For extra heavy duty industrial application |
