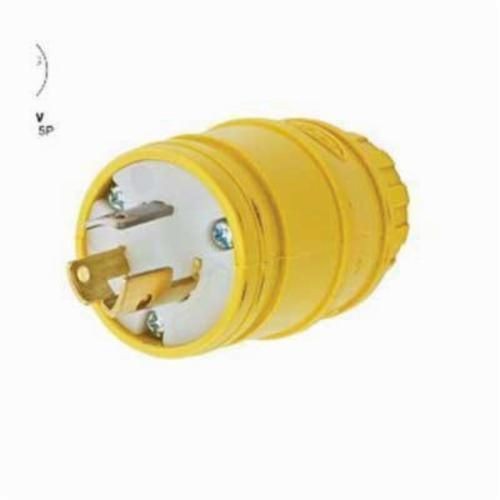

Wiring Device-Kellems Twist-Lock® Elastogrip® HBL24W47 Grounding Locking Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Wiring Device-Kellems Twist-Lock® Elastogrip® HBL24W47 Grounding Locking Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
SKU: HWDHBL24W47
Manufacturer Part Number: HBL24W47
UPC: 783585235844
Documents
Features
- Integral weatherproofing shroud seals connection between plug and connector
- Nylon compression nut keeps water and dust from getting into the body around the cord
- Yellow nylon cord clamp material
- Brass blade material, terminal screw material, ground screw material
- Cold rolled steel nickel plated terminal clamp material
- Stainless steel cord clamp screw material
- Steel zinc plated body holding screw material
- 18 AWG to 10 AWG stranded copper wire only terminal accommodation
Specification
| Grade | Industrial |
|---|---|
| Material | Elastomer |
| NEMA Rating | NEMA L5-15P |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 15 A |
| Catalog ID | HWDHBL24W47 |
| Color | Yellow |
| Cord Diameter | 0.3 to 0.65 in |
| Dimensions | 1.55 x 1.55 x 2.65 in |
| Enclosure | IP20 |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Screw |
| Type | Grounding |
| Voltage Rating | 125 VAC |
| Application | For extra heavy duty industrial application |
| Standard & Approvals | UL 498, CSA C22.2 No.42, Federal Spec W-C-596 |
| Horsepower | 0.5 hp |
