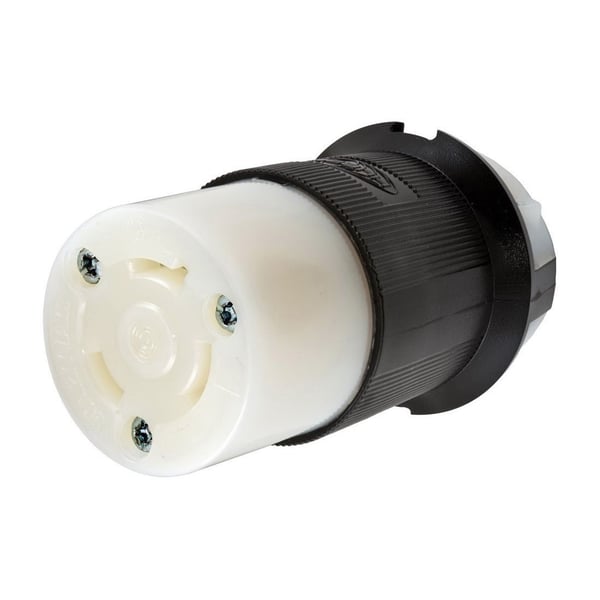

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2633 Heavy Duty Isolated Grounding Standard Sized Female Connector, 277 VAC, 30 A, 2 Poles, 3 Wires, Black/White
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2633 Heavy Duty Isolated Grounding Standard Sized Female Connector, 277 VAC, 30 A, 2 Poles, 3 Wires, Black/White
SKU: HWDHBL2633
Manufacturer Part Number: HBL2633
UPC: 783585038971
Documents
Features
- Superior cord grip design for flat cable protects terminations from excess strain
- Clear, funnel shaped wire entry for ease of termination
- Integral dust shield protects wiring chamber from dust or contaminants
Specification
| Grade | Industrial |
|---|---|
| Material | Nylon |
| NEMA Rating | L7-30R/WD1/WD5 |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 30 A |
| Color | Black/White |
| Dimensions | 2.26 x 2.26 x 3.86 in |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Pressure Screw |
| Type | Heavy Duty Isolated Grounding Standard Sized |
| Application | Indoor Applications |
| Standard & Approvals | ARRA, Buy American Act, RoHS Compliant, UL 498, Federal Specification W-C-596, CSA C22.2 No. 42 |
| Horsepower | 3 hp |
| Voltage Rating | 277 VAC |
| Enclosure | IP30 |
| Cord Diameter | 0.36 to 0.93 in |
| Catalog ID | HWDHBL2633 |
