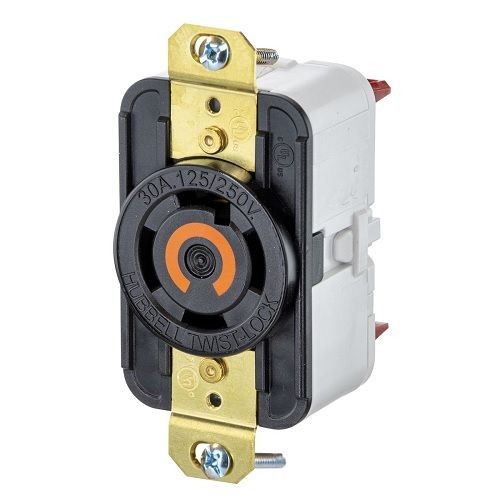

Wiring Device-Kellems Twist-Lock® HBL2710ST Single Flush Locking Receptacle With Spring Termination, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Black
Wiring Device-Kellems Twist-Lock® HBL2710ST Single Flush Locking Receptacle With Spring Termination, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Black
SKU: HWDHBL2710ST
Manufacturer Part Number: HBL2710ST
UPC: 783585788548
Features
- Faster termination time
- No need for screwdriver and torque wrench
- Spring termination eliminates strand relaxation
- High impact, abuse-resistant nylon face
- Face color coding by voltage facilitates locating and mating of proper devices
Specification
| Temperature Rating | -40 to 75 deg C |
|---|---|
| Terminal Type | Back Wire |
| Type | Single Flush |
| Voltage Rating | 125/250 VAC |
| Standard & Approvals | CSA C22.2 File No. 0.17, CSA C22.2 File No. 42, UL 498, UL 94 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 30 A |
| Catalog ID | HWDHBL2710ST |
| Color | Black |
| Dimensions | 3.28 in L x 1.7 in W x 1.468 in H |
| Enclosure | IP20 |
| Material | Nylon |
| NEMA Rating | NEMA L14-30R |
| Number Of Poles | 3 |
| Number of Wires | 4 |
