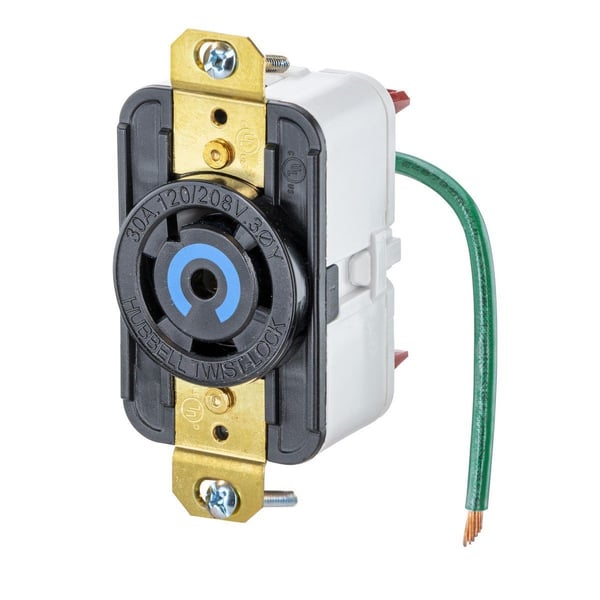

Wiring Device-Kellems Twist-Lock® HBL2810ST 3-Phase Single Flush Locking Receptacle With Spring Termination, 120/208Y VAC, 30 A, 4 Poles, 5 Wires, Black
Wiring Device-Kellems Twist-Lock® HBL2810ST 3-Phase Single Flush Locking Receptacle With Spring Termination, 120/208Y VAC, 30 A, 4 Poles, 5 Wires, Black
SKU: HWDHBL2810ST
Manufacturer Part Number: HBL2810ST
UPC: 783585788524
Documents
Features
- Faster termination time
- No need for screwdriver and torque wrench
- Spring termination eliminates strand relaxation
- High impact, abuse-resistant nylon face
- Face color coding by voltage facilitates locating and mating of proper devices
Specification
| Temperature Rating | -40 to 75 deg C |
|---|---|
| Terminal Type | Back Wire |
| Type | 3-Phase Single Flush |
| Voltage Rating | 120/208Y VAC |
| Standard & Approvals | CSA C22.2 File No. 0.17, CSA C22.2 File No. 42, UL 498, UL 94 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 30 A |
| Catalog ID | HWDHBL2810ST |
| Color | Black |
| Dimensions | 3.28 in L x 1.7 in W x 1.468 in H |
| Enclosure | IP20 |
| Material | Nylon |
| NEMA Rating | NEMA L21-30R |
| Number Of Poles | 4 |
| Number of Wires | 5 |
