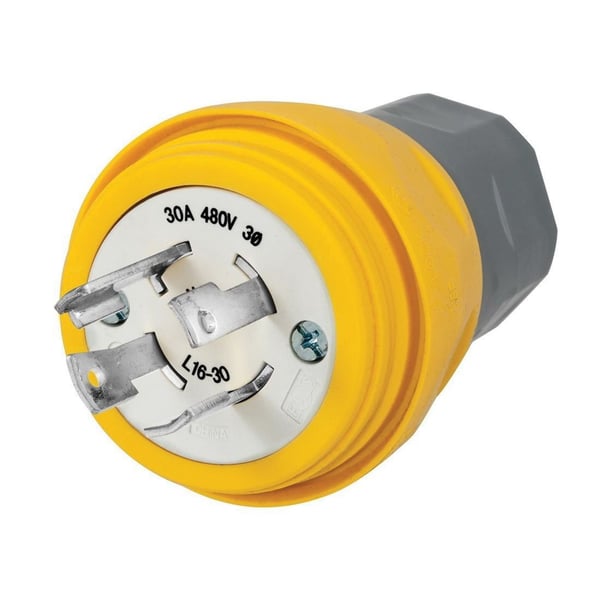

Wiring Device-Kellems Twist-Lock® HBL28W76 Grounding Male Locking Plug, 30 A, 480 VAC, 10 hp, 3 Poles, 4 Wires
Wiring Device-Kellems Twist-Lock® HBL28W76 Grounding Male Locking Plug, 30 A, 480 VAC, 10 hp, 3 Poles, 4 Wires
SKU: HWDHBL28W76
Manufacturer Part Number: HBL28W76
UPC: 783585131726
Documents
Features
- Smooth body design minimizes collection points simplifying the wash down process
- Strain relief nut always seals on the body, minimizing debris collection
- Stainless steel hardware and corrosion-resistant connection points
- Water and dust tight housing
Specification
| Grade | Commercial/Industrial |
|---|---|
| Material | Brass/Clear Polycarbonate/Composite/TPE |
| Number Of Poles | 3 |
| Number of Wires | 4 |
| Temperature Rating | -40 to 60 deg C |
| Terminal Type | Screw |
| Voltage Rating | 480 VAC |
| Amperage Rating | 30 A |
| Dimensions | 2.77 x 2.77 x 3.94 in |
| Horsepower | 10 hp |
| Standard & Approvals | ANSI Specified, UL 498, CSA C22.2 No. 42, NEMA WD1, WD6, RoHS, ARRA, Buy American Act Compliant |
| Type | 3-Phase Grounding Male Standard |
| NEMA Rating | NEMA L16-30P |
| Enclosure | NEMA 4/4X/12/6/6P |
| Cord Diameter | 3/8 to 1 in |
| Color | Yellow/White |
