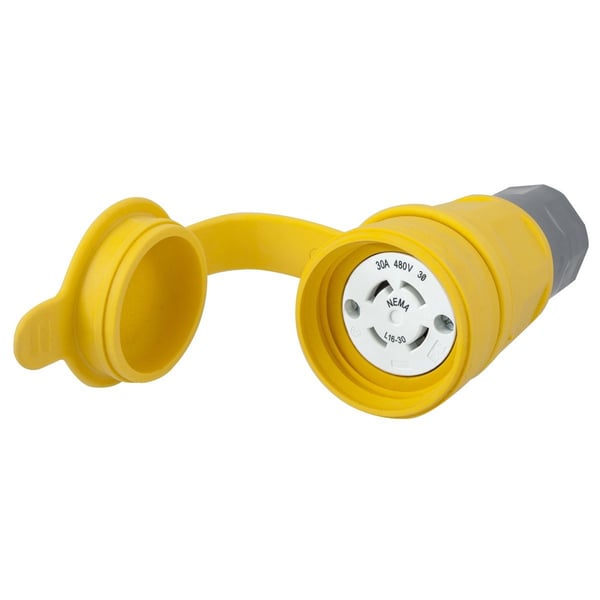

Wiring Device-Kellems Twist-Lock® Elastogrip® HBL29W76 3-Phase Isolated Grounding Water/Dust-Tight Female Connector
Wiring Device-Kellems Twist-Lock® Elastogrip® HBL29W76 3-Phase Isolated Grounding Water/Dust-Tight Female Connector
SKU: HWDHBL29W76
Manufacturer Part Number: HBL29W76
UPC: 783585131894
Documents
Features
- Smooth body design minimizes collection points simplifying the wash down process
- Strain relief nut always seals on the body, minimizing debris collection
- Stainless steel hardware and corrosion resistant connection points
Specification
| Grade | Commercial/Industrial |
|---|---|
| Material | Thermoplastic Elastomer |
| Number Of Poles | 3 |
| Number of Wires | 4 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 30 A |
| Color | Yellow |
| Dimensions | 2.77 x 2.77 x 5.67 in |
| Enclosure | IP65/IP66/IP67/NEMA 4/4X/12/6/6P |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Screw |
| Standard & Approvals | RoHS Compliant, UL 498, CSA C22.2 No. 42, ANSI Approved |
| Cord Diameter | 3/8 to 1 in |
| Catalog ID | HWDHBL29W76 |
| NEMA Rating | L16-30R/WD1/WD6 |
| Voltage Rating | 480 Delta VAC |
| Type | 3-Phase Isolated Grounding Standard Sized Water/Dust-Tight |
