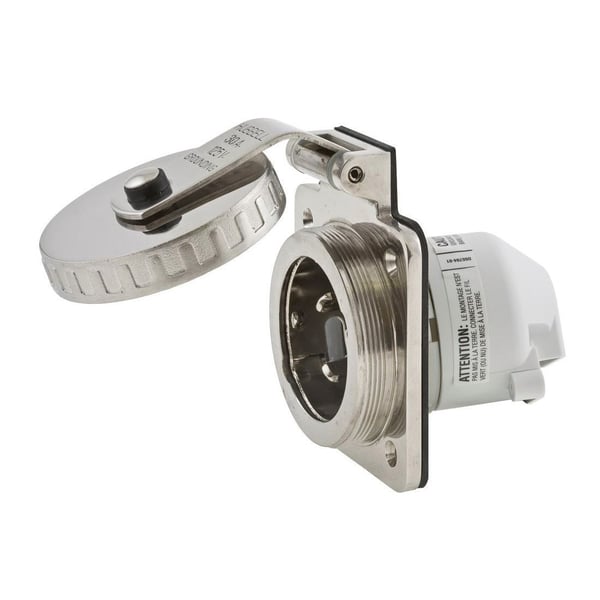

Wiring Device-Kellems Twist-Lock® HBL303SS 1-Phase Grounding Hull Inlet With Mounting Screw, Gasket, 125 VAC, 30 A, 2 Poles, 3 Wires, Stainless Steel
Wiring Device-Kellems Twist-Lock® HBL303SS 1-Phase Grounding Hull Inlet With Mounting Screw, Gasket, 125 VAC, 30 A, 2 Poles, 3 Wires, Stainless Steel
SKU: HWDHBL303SS
Manufacturer Part Number: HBL303SS
UPC: 783585040523
Features
- Self-closing cover
- Corrosion-resistant base and cover
- Threaded base for making a watertight seal
- Traditional, stainless steel shore power inlet has new easy to wire terminations
- Interior is transparent for quick and easy visual inspection
- Interior is shielded from the elements by a gasketed, self-closing cover, watertight when cover is screwed in place
- Mounting holes are 2.38 in on centers
Specification
| Grade | Marine |
|---|---|
| Material | Composite/Thermoplastic |
| NEMA Rating | NEMA L5-30P |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 30 A |
| Catalog ID | HWDHBL303SS |
| Color | Stainless Steel |
| Dimensions | 3.28 in W x 4.08 in H |
| Enclosure | IP56 |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Pressure Screw |
| Type | 1-Phase Grounding |
| Voltage Rating | 125 VAC |
| Standard & Approvals | UL 498 Listed, NEMA WD1, WD5, RoHS, ARRA, Buy American Act Compliant |
| Includes | Mounting Screw, Gasket |
