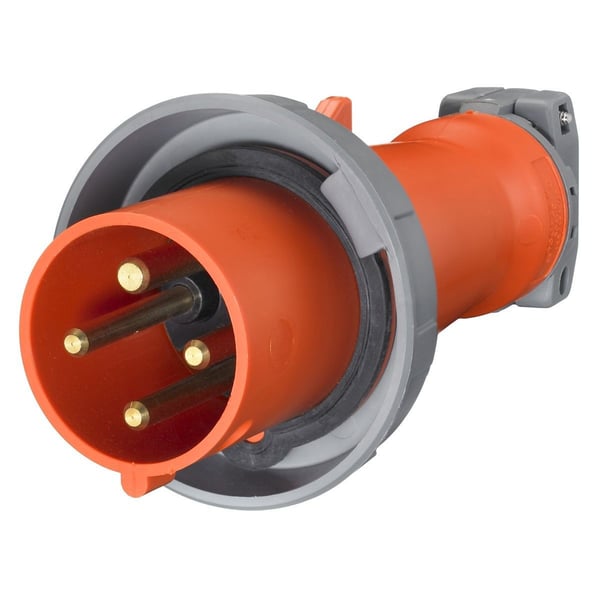

Wiring Device-Kellems HBL460P12W 1-Phase Grounding Male Non-NEMA Portable Watertight Standard Cord Mount Pin and Sleeve Plug, 125/250 VAC, 60 A, 3 Poles, 4 Wires, Orange
Wiring Device-Kellems HBL460P12W 1-Phase Grounding Male Non-NEMA Portable Watertight Standard Cord Mount Pin and Sleeve Plug, 125/250 VAC, 60 A, 3 Poles, 4 Wires, Orange
SKU: HWDHBL460P12W
Manufacturer Part Number: HBL460P12W
UPC: 783585404844
Features
- 1-piece non-metallic housing provides impact and chemical resistance in an insulated body
- Solid one piece pins for reliable electrical contact
- Gasketed sealing ring provides watertight seal when mated with receptacle or connector
- Heavy duty external cord grips for maximum cord retention
- Withstands 3000 VAC dielectric voltage
Specification
| Material | Composite |
|---|---|
| Number Of Poles | 3 |
| Number of Wires | 4 |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Pressure Screw |
| Type | 1-Phase Grounding Male Non-NEMA Portable Watertight Standard Cord Mount |
| Voltage Rating | 125/250 VAC |
| Application | High Ampacity Connections Applications |
| Standard & Approvals | UL 498, UL 94 Flammability Rating, IEC 309-1/309-2, CSA C22.2 File No. 0.17, RoHS Compliant |
| Amperage Rating | 60 A |
| Dimensions | 4.49 in Dia x 10.15 in L |
| Color | Orange |
| Enclosure | IP67 |
| Horsepower | 7.5 hp |
