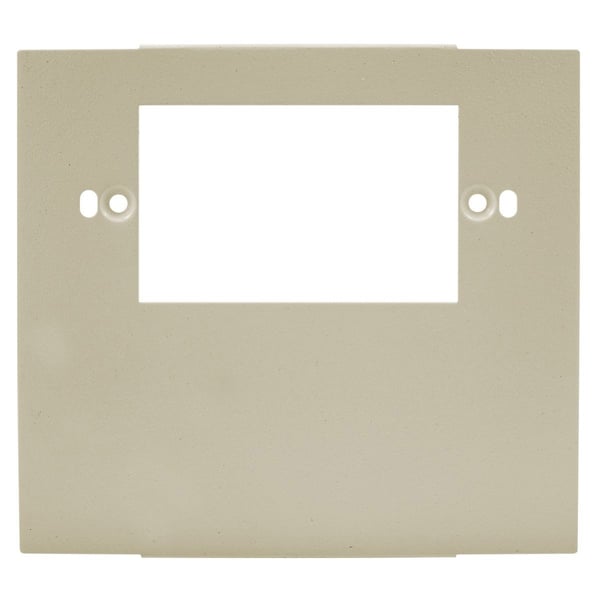

Wiring Device-Kellems HBL4747C1IV 2-Gang 1-Blank Standard Device Cover Plate With (1) Opening, For Use With HBL4750 Series Metal Raceway, Rolled Steel, Ivory
Wiring Device-Kellems HBL4747C1IV 2-Gang 1-Blank Standard Device Cover Plate With (1) Opening, For Use With HBL4750 Series Metal Raceway, Rolled Steel, Ivory
SKU: HWDHBL4747C1IV
Manufacturer Part Number: HBL4747C1IV
UPC: 783585215976
Documents
Features
- Use with commercially available 1-gang flush plates
- Without knockouts
Specification
| Suitable For Use With | HBL4750 Series Metal Raceway |
|---|---|
| Type | 2-Gang 1-Blank Standard |
| Application | Non-Hazardous Locations |
| Standard & Approvals | RoHS Compliant, UL 5A File No. E118895/E119190, CSA C22.2 No. 62 File No. LR87514, TIA/EIA 569A, NEMA 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | HWDHBL4747C1IV |
| Color | Ivory |
| Dimensions | 5.5 in L x 4.9 in W x 0.4 in H |
| Material | Rolled Steel |
| Includes | Mounting Bracket |
