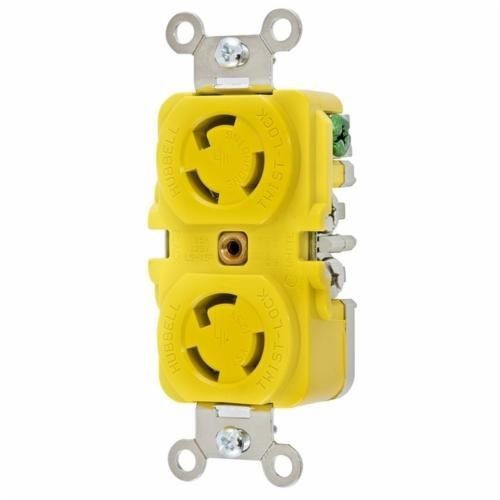

Wiring Device-Kellems Twist-Lock® HBL47CM00 Grounding Locking Duplex Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Wiring Device-Kellems Twist-Lock® HBL47CM00 Grounding Locking Duplex Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
SKU: HWDHBL47CM00
Manufacturer Part Number: HBL47CM00
UPC: 783585393971
Documents
Features
- 0.062 in steel terminal clamp
- NO 8 to 32 brass terminal screw
- NO 8 to 32 brass (green) ground screw
- 0.031 in brass contact spring
- Zinc plated steel mounting screw material
- RTP cover (top) and base
- 0.031 in brass ground contact
- 0.05 in brass bridge (mounting strap)
- Brass rivet
- Stainless steel auto ground clip
- Molded in/stamped on ratings
- Permanently ink marked on product catalog number
- 2000 VAC minimum dielectric voltage withstand
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
- 15 A 14 AWG terminal accommodation
- Terminals identified in accordance with UL498 (x, y, z, white, green)
- UL 94 VO for receptacles and inlets, HB or better for plugs and connectors flammability
- Reinforced thermoplastic construction
- Chem/marine/standard style
Specification
| Material | Thermoplastic |
|---|---|
| NEMA Rating | L5-15R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Screw |
| Type | Grounding |
| Voltage Rating | 125 VAC |
| Standard & Approvals | CSA C22.2 NO 42, Federal Specification W-C-596, UL 498 |
| Amperage Rating | 15 A |
| Dimensions | 1.7 in W x 1.17 in D |
| Color | Yellow |
| Horsepower | 1/2 hp |
