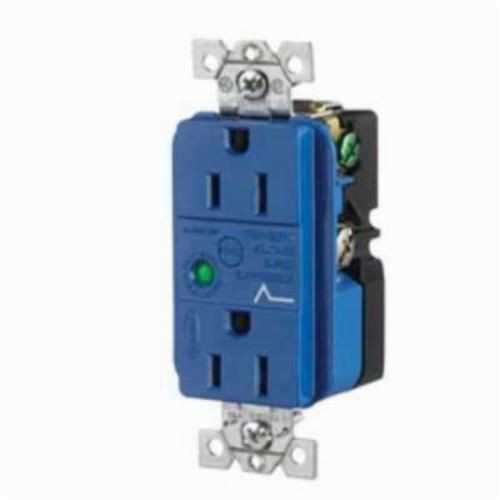

Wiring Device-Kellems HBL5262SA Grounding Duplex Receptacle With Light and Alarm, 125 VAC, 15 A, 2 Poles, 3 Wires, Blue
Wiring Device-Kellems HBL5262SA Grounding Duplex Receptacle With Light and Alarm, 125 VAC, 15 A, 2 Poles, 3 Wires, Blue
SKU: HWDHBL5262SA
Manufacturer Part Number: HBL5262SA
UPC: 783585060170
Documents
Features
- 3 wire grounding
- Withstands 2000 V minimum dielectric voltage
- Automatic self-grounding staple
- Distinctive surge symbol provides quick identification
- Power-on indicator light verifies that power is available
- Alert alarm sounds when surge protection is NO longer functioning
- Audible and visual alarm
- UL 94 V-2 top, UL 94 V-0 base flammability
- Nylon top and base material
- 0.031 in brass power contact
- Tandem modified bypass contact design
- 0.05 steel-zinc coated mounting strap
- 0.031 in brass clamping plate
- NO 8 - 32 brass terminal screws
- Steel (green) grounding screw
- Steel-zinc plated mounting screws
- Nylon alarm muting screw
Specification
| Material | Nylon |
|---|---|
| NEMA Rating | NEMA 5-15R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Terminal Type | Back Wired |
| Type | Grounding |
| Voltage Rating | 125 VAC |
| Standard & Approvals | UL File No. E2186 |
| Amperage Rating | 15 A |
| Color | Blue |
| Horsepower | 0.5 hp |
| Temperature Rating | -40 to 75 seg C |
| Grade | Standard |
| Dimensions | 3.28 in H x 1.75 in W x 1.23 in D |
