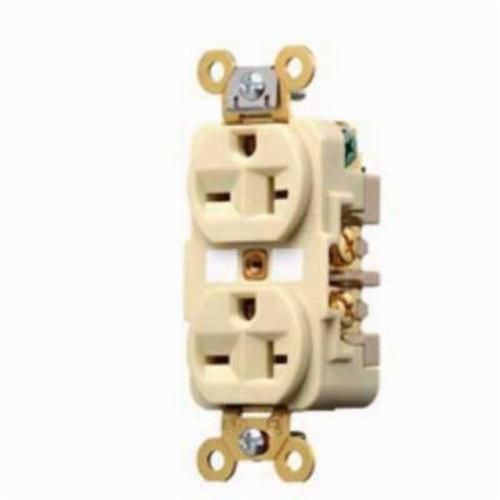

Wiring Device-Kellems HBL5462I Heavy Duty Grounding Duplex Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, Ivory
Wiring Device-Kellems HBL5462I Heavy Duty Grounding Duplex Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, Ivory
SKU: HWDHBL5462I
Manufacturer Part Number: HBL5462I
UPC: 783585435527
Documents
Features
- 3 wire grounding
- Withstands 2000 V minimum dielectric voltage
- Certified for current interrupting at full rated current
- One-piece brass integral ground strap
- Deep nylon body design delivers increased impact resistance
- Finder groove face
- 14 - 10 AWG copper stranded or solid conductor only
- UL 94 V-2 top, UL 94 V-0 base flammability
- NO 8 - 32 brass, multiple drive (green) ground screw material
- Nylon top material
- 0.037 in brass power contacts material
- 0.05 in brass mounting strap material
- Stainless steel auto ground clip material
- Steel-zinc plated mounting screw material
- Traditional face
- Made of reinforced pet
Specification
| Grade | Specification |
|---|---|
| Material | Reinforced PET |
| NEMA Rating | NEMA6-15R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 20 A |
| Color | Ivory |
| Dimensions | 3.28 x 1.65 x 1.19 in |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Back and Side Wire |
| Type | Heavy Duty Grounding |
| Voltage Rating | 250 VAC |
| Standard & Approvals | UL File No. E2186, CSA 22.2 No. 42 File No. 285 |
| Horsepower | 2 hp |
| Catalog ID | HWDHBL5462I |
