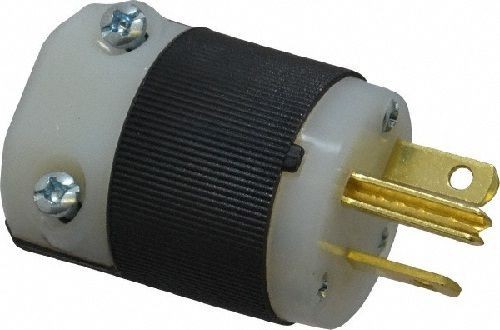

Hubbell, Straight Blade Plug, 250 V, 20 A, NEMA 6-20P, Black & White, 2 Pole, 3 Wire
Hubbell, Straight Blade Plug, 250 V, 20 A, NEMA 6-20P, Black & White, 2 Pole, 3 Wire
SKU: HWDHBL5466C
Manufacturer Part Number: HBL5466C
UPC: 783585174709
Features
- Withstands 2000 V minimum dielectric voltage
- Certified for current interrupting at full rated current
- Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Terminals identified in accordance with UL 498(brass, white, green)
- 18 - 10 AWG copper stranded or solid conductor terminal
- UL 94-HB or better flammability
- 0.06 in brass contact blades, 0.04 in copper alloy material
- NO 8-32 brass /Ni plated for neutral terminal screw, NO 8-32 brass, multiple drive (green) ground screw material
- Ribbed nylon housing is impact and chemical resistant
- Fast lead assembly screws
- Beveled housing prevents snagging
- Black nylon housing, clear polycarbonate retainer, natural nylon blade holder and cord clamp material
Specification
| Grade | Industrial/Commercial |
|---|---|
| Material | Nylon |
| NEMA Rating | NEMA 6-20P |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Screw |
| Type | Grounding |
| Voltage Rating | 250 VAC |
| Application | For industrial and commercial applications |
| Standard & Approvals | UL 498 File E1706 Listed, CSA C22.2 No. 42 File 280 Certified |
| Amperage Rating | 20 A |
| Dimensions | 1.97 x 1.53 x 1.53 in |
| Color | Black |
| Cord Diameter | 0.23 to 0.72 in |
| Enclosure | IP20 |
| Horsepower | 2 hp |
