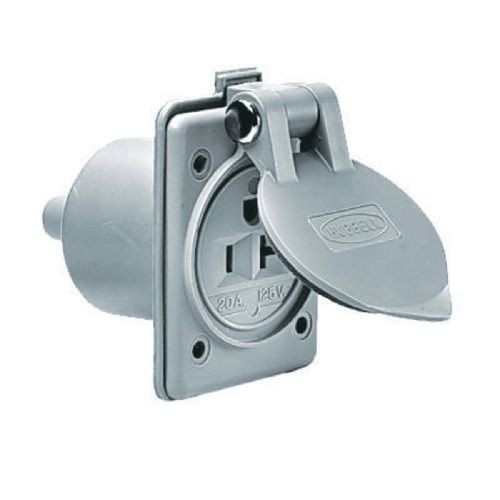

Wiring Device-Kellems HBL61CM65 Corrosion Resistant Grounding Standard Straight Blade Flanged Outlet, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
Wiring Device-Kellems HBL61CM65 Corrosion Resistant Grounding Standard Straight Blade Flanged Outlet, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
SKU: HWDHBL61CM65
Manufacturer Part Number: HBL61CM65
UPC: 783585808673
Features
- Multiple drive screws
- Nickel plated brass blades
- Weatherproof boot covers terminals
- Weatherproof flip lid
Specification
| Material | Composite/Thermoplastic |
|---|---|
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Screw |
| Voltage Rating | 125 VAC |
| Amperage Rating | 20 A |
| Dimensions | 2.68 in L x 2.25 in W x 2.68 in H |
| Color | Gray |
| Standard & Approvals | ARRA, Buy American Act, RoHS Compliant, CSAC22.2 No.42, NEMA WD1, WD5, WD6, UL 498 File No.E2186 |
| Application | Electric Trolling Motors and Reel Applications |
| Type | Corrosion Resistant Grounding Standard |
| Horsepower | 1/2 hp |
| Enclosure | IP44 |
