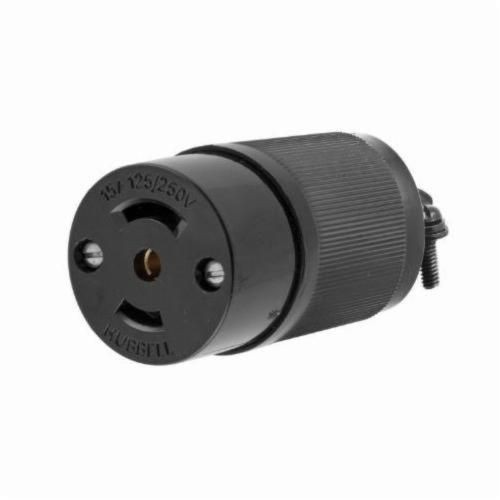

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL7484 Insulated Female Connector Body, 125/250 VAC, 15 A, 3 Poles, Black
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL7484 Insulated Female Connector Body, 125/250 VAC, 15 A, 3 Poles, Black
SKU: HWDHBL7484
Manufacturer Part Number: HBL7484
UPC: 783585237381
Features
- Abuse resistant nylon housing
- Phenolic body for high heat resistance
- Angled body design for low profile in tight spaces
- Nylon housing, brass contacts, phenolic contact holder, NO 5 - 40 brass terminal screws, zinc plated steel with black lacquer finish terminal clamp
- Indoor dry unless protected by additional means environmental conditions
- Withstands 2000 V dielectric voltage
- HB or better per UL 94 or CSA 22.2 No. 0.17 flammability
- NO 14 to 12 AWG conductor range
- Non-grounding
- Cord mounted
Specification
| Material | Composite |
|---|---|
| NEMA Rating | NEMA ML-3R |
| Number Of Poles | 3 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 15 A |
| Color | Black |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Pressure Screw |
| Type | Insulated |
| Voltage Rating | 125/250 VAC |
| Application | For heavy duty industrial applications |
| Standard & Approvals | UL 498 Listed, CSA C22.2 No.42 Certified |
| Dimensions | 1.17 x 1.17 x 2.42 in |
| Cord Diameter | 0.281 to 0.421 in |
| Catalog ID | HWDHBL7484 |
