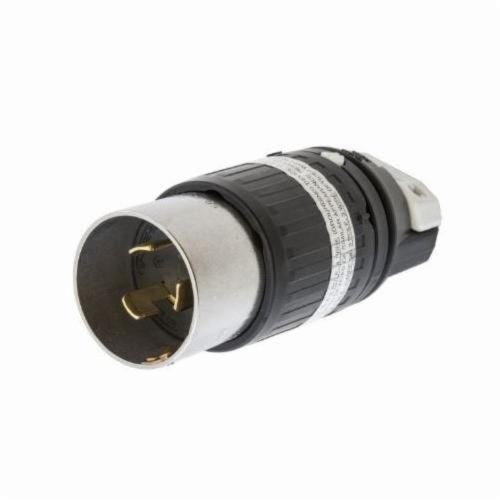

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL7765C Locking Male Plug, 240/600 VDC, 50 A, 3 Poles, 4 Wires
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL7765C Locking Male Plug, 240/600 VDC, 50 A, 3 Poles, 4 Wires
SKU: HWDHBL7765C
Manufacturer Part Number: HBL7765C
UPC: 783585237855
Documents
Features
- Super tough nylon housing offers better impact qualities
- Stainless steel shroud protects contacts and prevents mismating
- Heavy duty two-piece external cord clamp provides maximum strain relief
- Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
- Thermoplastic polyester interior provides heat resistance and impact strength
- 30000 W power
- 1 phase
- NO 6 AWG wire size
- Polyester blade holder/cord grip, brass blades, stainless steel shell/terminal screws
- Withstands 2000 V minimum dielectric voltage
- Grounding
- Non NEMA rating
Specification
| Material | Nylon |
|---|---|
| Number Of Poles | 3 |
| Number of Wires | 4 |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Screw |
| Voltage Rating | 600 VAC/250 VDC |
| Application | For extra heavy duty industrial applications |
| Amperage Rating | 50 A |
| Color | Black/White |
| Cord Diameter | 0.83 to 1.25 in |
| Standard & Approvals | UL 498 Listed, CSA C22.2 No.42 Certified |
| Dimensions | 2.56 x 2.56 x 6.37 in |
