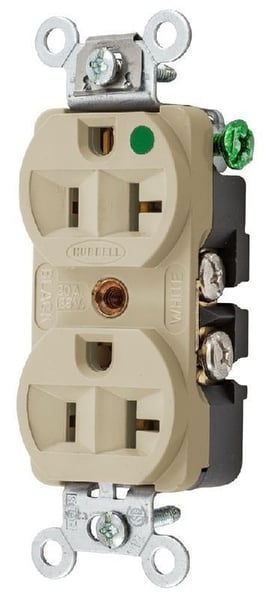

Hubbell, Straight Blade Receptacle, Duplex, 2 Pole, 3 Wire, 20 A, 125 V, Ivory

Selected HBL8300HIHubbell, Straight Blade Receptacle, Duplex, 2 Pole, 3 Wire, 20 Ampere, 125 Volts, Ivory
HBL8300HIHubbell, Straight Blade Receptacle, Duplex, 2 Pole, 3 Wire, 20 Ampere, 125 Volts, Ivory

Documents

Short Description

To qualify for the “Hospital Grade” designation and use of the associated green dot symbol, UL requires that the manufacturer design its devices to perform to specific levels. These levels form an established baseline below which no manufacturer can fall and still carry a green dot. Hubbell sets their standards high. Each product is built to withstand the severe conditions of abuse that are unique to the hospital environment. Hubbell receptacles have exclusive design features that set them apart from the competition.

Features

  • RTP base offers greater heat resistance, plus contact stability
  • Impact resistant finder groove face
  • Triple wipe contacts
  • PBT face and base material
  • 0.031 in (0.8) brass contacts and ground contacts material
  • Nickel plated steel clamping plate
  • Brass terminal screws
  • 0.05 in (1.3) galvanized steel mounting strap, stainless steel automatic self-grounding staple, zinc plated steel mounting screws
  • Certified for current interrupting at full rated current
  • Withstands 2000 V minimum dielectric voltage
  • NO 12 to 10 AWG stranded or solid copper wire only terminal accommodation
  • Terminals identified in accordance with UL 498 and CSA
  • UL 94V-0 flammability

Specification

Grade
Hospital
Material
PBT
NEMA Rating
NEMA 5-20R
Number Of Poles
2
Number of Wires
3
Minimum Order Qty
1
Order Interval
1
Amperage Rating
20 A
Catalog ID
HWDHBL8300HI
Color
Ivory
Dimensions
3.28 x 1.33 x 1.05 in
Temperature Rating
-40 to 75 deg C
Terminal Type
Back and Side Wired
Type
Grounding Slender/Compact
Voltage Rating
125 VAC
Application
For slender/compact hospital grade applications
Standard & Approvals
UL 498 E2186 Listed, CSA 22.2, No. 42 File 285 Certified, Federal Specification W-C-596, NEMA WD-6 Compliant
Horsepower
1 hp
