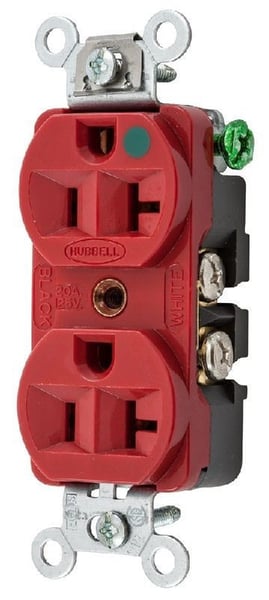

Hubbell, Straight Blade Receptacle, Duplex, 2 Pole, 3 Wire, 20 A, 125 V, Red
Hubbell, Straight Blade Receptacle, Duplex, 2 Pole, 3 Wire, 20 A, 125 V, Red
SKU: HWDHBL8300HRED
Manufacturer Part Number: HBL8300HRED
UPC: 783585247519
Features
- 3 wire grounding
- Withstands 2000 V minimum dielectric voltage
- Certified for current interrupting at full rated current
- Slender/compact design
- Impact-resistant finder groove face
- Triple wipe contacts
- 12 - 10 AWG copper stranded or solid conductor only
- UL 94-V2 flammability
- Nylon face
Specification
| Grade | Hospital |
|---|---|
| Material | Nylon |
| NEMA Rating | NEMA5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Back and Side Wire |
| Type | Extra Heavy Duty Grounding |
| Voltage Rating | 125 VAC |
| Standard & Approvals | UL File No. E2186, CSA 22.2 No. 42 File No. 285 |
| Amperage Rating | 20 A |
| Dimensions | 3.28 x 1.33 x 1.05 in |
| Color | Red |
| Enclosure | IP20 |
| Horsepower | 1 hp |
