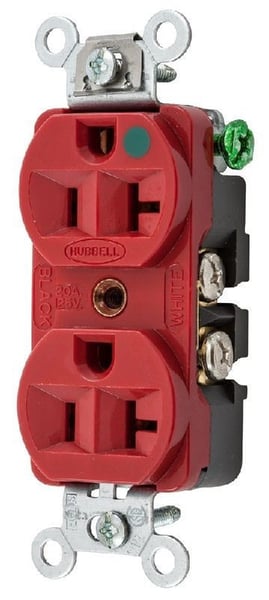

Hubbell, Straight Blade Receptacle, Duplex, 2 Pole, 3 Wire, 20 A, 125 V, Red

Selected HBL8300REDHubbell, Straight Blade Receptacle, Duplex, 2 Pole, 3 Wire, 20 Ampere, 125 Volts, Red
HBL8300REDHubbell, Straight Blade Receptacle, Duplex, 2 Pole, 3 Wire, 20 Ampere, 125 Volts, Red

Documents

Short Description

To qualify for the “Hospital Grade” designation and use of the associated green dot symbol, UL requires that the manufacturer design its devices to perform to specific levels. These levels form an established baseline below which no manufacturer can fall and still carry a green dot. Hubbell sets their standards high. Each product is built to withstand the severe conditions of abuse that are unique to the hospital environment. Hubbell receptacles have exclusive design features that set them apart from the competition.

Features

  • Deep body design with circuit ID face
  • Patented ground contact provides redundant grounding
  • Unique bypass contact design
  • PBT face and base material, 0.036 in (0.9) nickel plated brass by-pass power contacts, brass ground contacts, nickel plated brass clamping plate and mounting strap material
  • Plated brass terminal screws, stainless steel automatic self-grounding clip and mounting screws
  • Certified for current interrupting at full rated current
  • Withstands 2000 V minimum dielectric voltage
  • NO 12 to 10 AWG stranded or solid copper wire only terminal accommodation
  • Terminals identified in accordance with UL 498 and CSA
  • UL 94V-0 flammability
  • Circuit ID marking area

Specification

Grade
Hospital
Material
PBT
NEMA Rating
NEMA 5-20R
Number Of Poles
2
Number of Wires
3
Minimum Order Qty
1
Order Interval
1
Amperage Rating
20 A
Catalog ID
HWDHBL8300RED
Color
Red
Dimensions
3.28 x 1.65 x 1.19 in
Temperature Rating
-40 to 75 deg C
Terminal Type
Back and Side Wired
Type
Extra Heavy Duty Grounding
Voltage Rating
125 VAC
Application
For hospital grade applications
Standard & Approvals
UL 498 E2186 Listed, CSA 22.2, No. 42 File 285 Certified, Federal Specification W-C-596, NEMA WD-6 Compliant
Horsepower
1 hp
