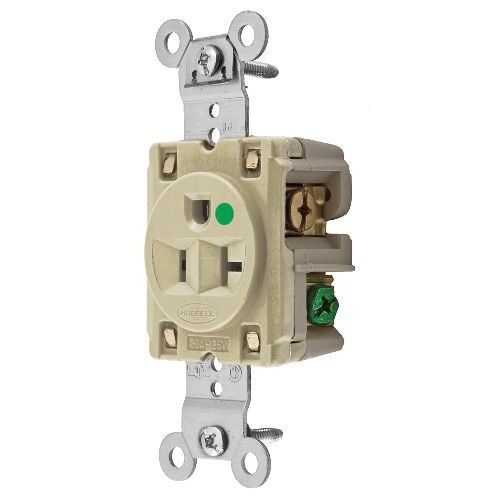

Wiring Device-Kellems HBL® HBL8310I Extra Heavy Duty Single Self-Grounding Standard Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
Wiring Device-Kellems HBL® HBL8310I Extra Heavy Duty Single Self-Grounding Standard Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
SKU: HWDHBL8310I
Manufacturer Part Number: HBL8310I
UPC: 783585015941
Features
- 1-piece nickel plated brass integral ground strap
- Patented bypass contact design
Specification
| Grade | Hospital |
|---|---|
| Material | Composite/Thermoplastic |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Back/Side Wired Screw |
| Type | Extra Heavy Duty Single Self-Grounding Standard |
| Voltage Rating | 125 VAC |
| Standard & Approvals | ARRA, Buy American Act, RoHS Compliant, UL 498 File No. E2186, CSA C22.2 No. 42 File 285, Federal Specification WC596, UL 94-V-2, UL 94-V-0, UL 94-5-VA Flammability Rating, NEMA WD1, WD5, WD6 |
| Amperage Rating | 20 A |
| Dimensions | 3.28 x 1.63 x 1.19 in |
| Color | Ivory |
| Enclosure | IP20 |
| Horsepower | 1 hp |
