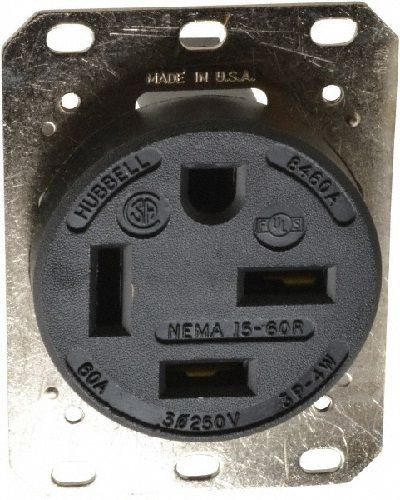

Hubbell, Straight Blade Receptacle, Single, 4 Pole, 4 Wire, 60 A, 250 V, Black
Hubbell, Straight Blade Receptacle, Single, 4 Pole, 4 Wire, 60 A, 250 V, Black
SKU: HWDHBL8460A
Manufacturer Part Number: HBL8460A
UPC: 783585015187
Documents
Features
- 4 wire non-grounding
- Withstands 2000 V minimum dielectric voltage
- Certified for current interrupting at full rated current
- Catalog number, ratings and certifications molded in face
- Sequenced contacts assure protection
- One-piece design power and ground contacts
- 12 - 6 AWG copper stranded or solid conductor only
- UL 94 V-0 flammability
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150 percent of rated current at a power factor of 75 percent
- Terminals identified in accordance with UL 498 and CSA
- 3/8 in allen head, plated steel terminal screw material
- 3/8 in allen head, plated steel ground screw material
- Glass reinforced pet top material
- 0.04 in brass power contacts material
- 0.062 in plated steel mounting strap material
- Steel-zinc plated mounting screws
- Copper box terminals material, traditional face
- Traditional face
- Made of glass reinforced pet
Specification
| Grade | Specification |
|---|---|
| Material | Reinforced PET |
| NEMA Rating | NEMA15-60R |
| Number Of Poles | 3 |
| Number of Wires | 4 |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Back and Side Wire |
| Type | Heavy Duty 3 Phase Non-Grounding |
| Voltage Rating | 250 VAC |
| Standard & Approvals | UL File No. E2186, CSA Certified |
| Amperage Rating | 60 A |
| Dimensions | 2.75 in W x 2.44 in D x 3.28 in H |
| Color | Black |
| Enclosure | IP20 |
| Horsepower | 10 hp |
