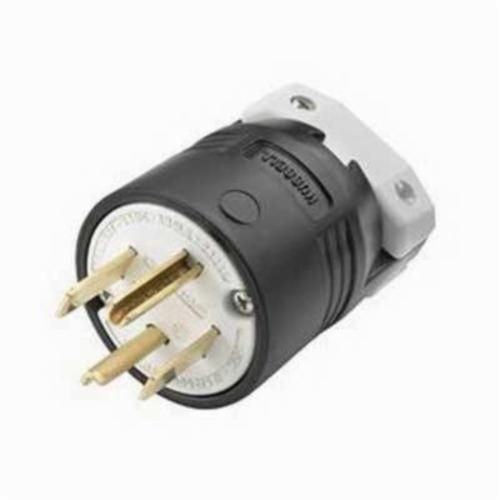

Wiring Device-Kellems Insulgrip® Grounding Straight Blade Plug, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Black/White
Wiring Device-Kellems Insulgrip® Grounding Straight Blade Plug, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Black/White
SKU: HWDHBL9431C
Manufacturer Part Number: HBL9431C
UPC: 783585015309
Documents
Features
- Withstands 2000 V minimum dielectric voltage
- Certified for current interrupting at full rated current
- Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Terminals identified in accordance with UL 498(brass, white, green)
- 12 - 14 AWG copper stranded or solid conductor terminal
- UL 94-HB or better flammability
- 0.1 in brass contact blades, 0.075 in ground contact blade material
- Steel-zinc-plated terminal screw, 3/8 in allen head, plated steel ground screw material
- Gripping ribs provide secure gripping area
- Glass reinforced pet blade holder and retainer material, glass reinforced polyester cord clamp
Specification
| Grade | Industrial/Commercial |
|---|---|
| Material | Nylon |
| NEMA Rating | NEMA 14-30P |
| Number Of Poles | 3 |
| Number of Wires | 4 |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Screw |
| Type | Grounding |
| Voltage Rating | 125/250 VAC |
| Application | For industrial and commercial applications |
| Standard & Approvals | UL 498 File E1706 Listed, CSA C22.2 No. 42 File 280 Certified |
| Amperage Rating | 30 A |
| Dimensions | 4.13 x 2.88 x 2.88 in |
| Color | Black/White |
| Cord Diameter | 0.625 to 1.31 in |
| Enclosure | IP20 |
| Horsepower | 2 hp |
