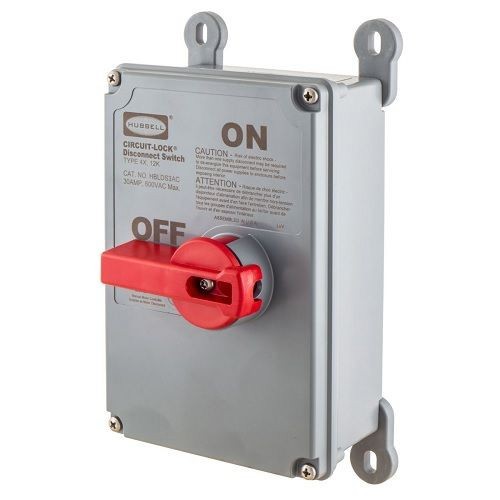

Wiring Device-Kellems Circuit-Lock® HBLDS3AC Non-Fusible Enclosed Disconnect Switch With Auxiliary Contacts, 600 VAC, 30 A, 15 hp, 2-Position Contact, 3 Poles
Wiring Device-Kellems Circuit-Lock® HBLDS3AC Non-Fusible Enclosed Disconnect Switch With Auxiliary Contacts, 600 VAC, 30 A, 15 hp, 2-Position Contact, 3 Poles
SKU: HWDHBLDS3AC
Manufacturer Part Number: HBLDS3AC
UPC: 783585430607
Documents
Features
- Adjustable mounting feet
- Stainless steel hardware for corrosion resistance
- Lockable handle to meet OSHA lockout tag out regulations
- Non metallic enclosure, non conducting
- Internal frame automatically bonds all grounds
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Material | Composite |
| Mounting Type | Feet |
| Number Of Poles | 3 |
| Number of Wires | 3 |
| Phase | 3 |
| Power Rating | 15 hp |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Screw |
| Type | Non-Fusible |
| Voltage Rating | 600 V |
| Application | Extra Heavy Duty Industrial Applications |
| Standard & Approvals | UL Listed, CSA Certified |
| Amperage Rating | 30 A |
| Dimensions | 8.5 x 6 x 4.12 in |
| Actuator Type | Lever Operated |
| Color | Gray |
| Contact Form | 2-Position |
| Enclosure Type | NEMA 4X |
| Horsepower | 15 hp |
