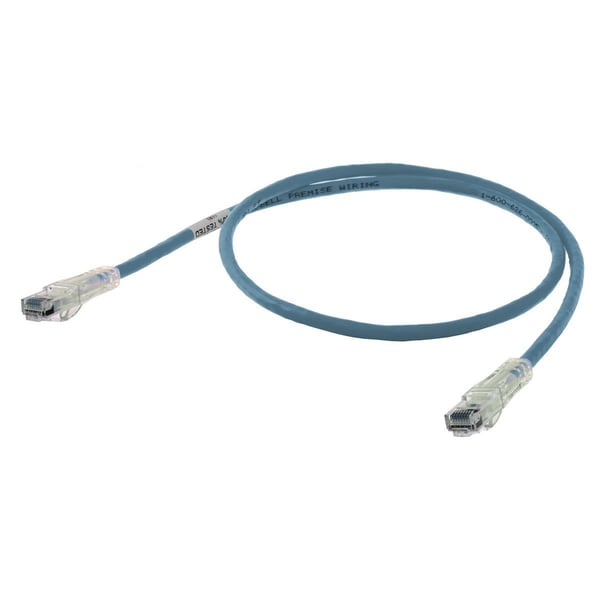

PREMISE WIRING NEXTSPEED® SPEEDGAIN® HC6B03 Slim Standard Patch Cord, Cat 6a, 24 AWG Solid Copper Conductor, RJ-45 Connector, 3 ft L Cord

Selected HC6B05PREMISE WIRING NEXTSPEED® SPEEDGAIN® HC6B03 Slim Standard Patch Cord, Cat 6a, 24 AWG Solid Copper Conductor, RJ-45 Connector, 3 ft L Cord
HC6B05PREMISE WIRING NEXTSPEED® SPEEDGAIN® HC6B03 Slim Standard Patch Cord, Cat 6a, 24 AWG Solid Copper Conductor, RJ-45 Connector, 3 ft L Cord

Documents

Short Description

NEXTSPEED® Cat 6 solution is a tuned system of structured cabling components designed and balanced to work together to deliver bandwidth beyond 500 MHz. HC6's enhanced custom cable and unique plug design provides superior NEXT and return loss parameters supporting TSB-155 10Gigabit Ethernet zero bit error transmission. Don't jeopardize your network, Hubbell's NEXTSPEED® Cat 6 solution is the product for the digital world, and provides a solid foundation for today's network applications.

Features

  • Third party verified Cat 6 component
  • Plug optimized for high density switch port
  • Extended strain relief for added protection in high density applications
  • Customized patch cable designed for optimized IL and NEXT
  • Sled compartmentalizes conductors to reduce NEXT and improved balance
  • Flexible cable for easy cable management
  • Backwards compatible to Cat 5e, 5 and 3
  • Performance, conductor sled improves crosstalk increasing performance for error free transmissions
  • Snagless design, easy to route and cable manage without the latch getting caught
  • Strain relief, plug and boot constructed from clear polycarbonate

Specification

Insulation Material
Flame Retardant PVC
Jacket Color
Blue
Jacket Material
Flame Retardant PVC
Minimum Order Qty
1
Order Interval
1
Catalog ID
HPWHC6B03
Category Type
Cat 6
Conductor Size
(8) 24 AWG
Conductor Type
UTP Stranded Copper
Connector Type
RJ45 Plug
Cord Length
3 ft
Series
Slim
Type
CM Rated Standard
Voltage Rating
300 VAC
Application
Data Exchange, 10GBASE-T TSB-155 (10-Gigabit Ethernet 35-55 meters), 1000Base-T Gigabit Ethernet, 10/100BASE-T Ethernet, ATM 155 Mbps and Voice Protocol VoIP/Video Protocol IPTV Application
Standard & Approvals
RoHS Compliant, ANSI/TIA/EIA-568-C.2, PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
